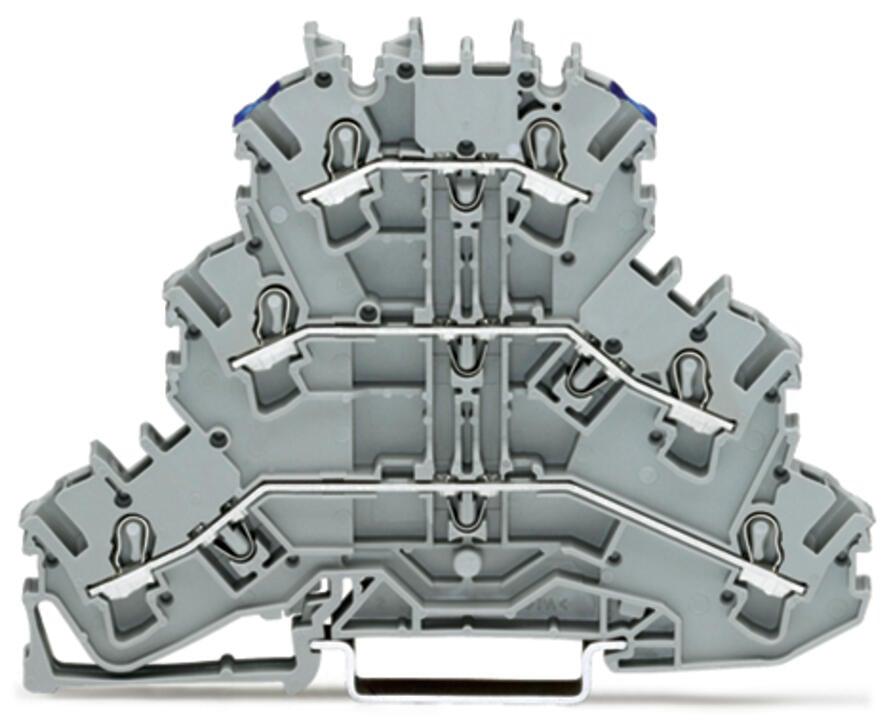

WAGO 2002-3203 TOPJOB S triple-deck terminal block
Part Number # 2002-3203
SKU # 2369104
Wago 2002-3203 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2002-3203 |
| SKU #: | 2369104 |
| Amperage Rating: | 24 A |
| Dimensions: | 3.673 in H x 0.205 in W x 3.201 in D |
| Number of Poles: | 3 |
| Type: | Operating Tool |
| Wire Size: | 22 to 12 AWG |
| Actuation type: | Push-in || Operating tool |
| Approvals per: | UL 1059 |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 93.3 mm / 3.673 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 2.5 mm² |
| Number of connection points: | 3 |
| Number of connection points (connection type): | 3 |
| Potential marking: | L/L/N |
| Rated current: | 24 A |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Total number of connection points: | 6 |
| Weight: | 16.845 g |
| Width: | 5.2 mm / 0.205 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918691192 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2002-3203 TOPJOB S triple-deck terminal block
Brand: Wago
Part Number: 2002-3203
Additional Description: WAGO-2002-3203 TRIPLE-DECK TERMINAL BLOCK; THROUGH/THROUGH/THROUGH TERMINAL BLOCK; L/L/N; WITHOUT MARKER CARRIER; SUITABLE FOR EX E II APPLICATIONS; BLUE CONDUCTOR ENTRY UPPER DECK; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM ; PUSH-IN CAGE CLAMP ; 2,50 MM ; GRAY 20023203 TERMINAL BLOCK, GRAY
Catalog Description: Triple-deck terminal block; Through/through/through terminal block; L/L/N; without marker carrier; suitable for Ex e II applications; Blue conductor entry upper deck; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray
2002-3203 Application
Suitable for Ex e II applications2002-3203 Standards
CSA 22.2 No 158|ATEX: PTB 03 ATEX 1162 U / IECEx: PTB 03.0004U (Ex eb IIC Gb)|RoHS CompliantSKU #2369104Part Number #2002-3203UNSPSC39121410UPC04044918691192
