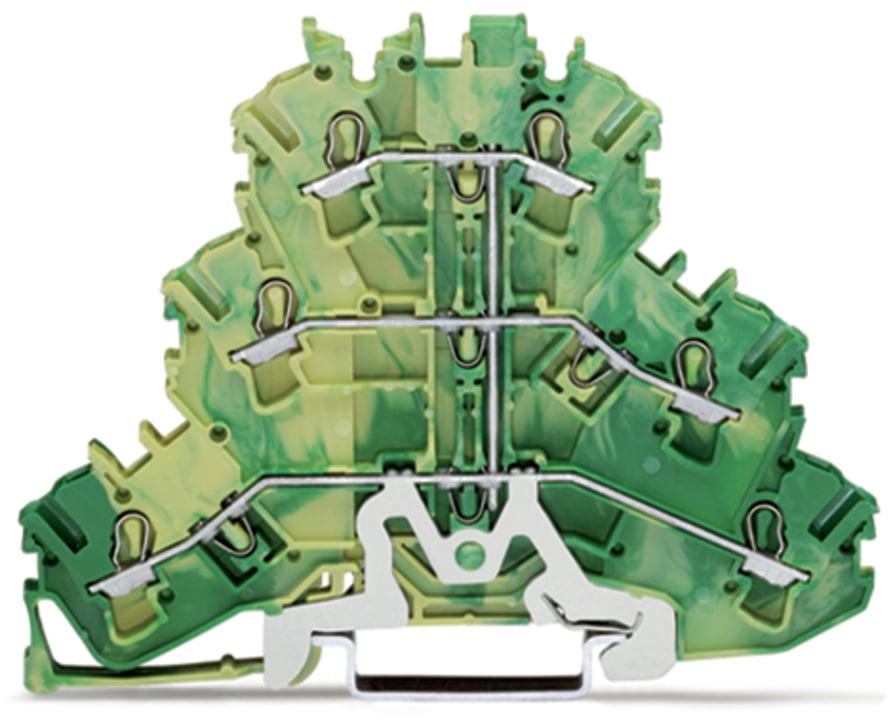

WAGO 2002-3207 TOPJOB S triple-deck ground terminal block
Part Number # 2002-3207
SKU # 2005345
$14.54 / Each
Typical price:$16.24 / Each
Wago 2002-3207 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2002-3207 |
| SKU #: | 2005345 |
| Dimensions: | 0.205 in W x 3.673 in D x 2.736 in H |
| Type: | 6-Conductor Ground |
| Wire Size: | 22 to 12 AWG Solid |
| Material: | Polyamide |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918691277 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$14.54 / Each
Typical price:$16.24 / Each
Quantity:
- WAGO TOPJOB Triple-Deck Terminal Block, 6-Conductor Ground, 22 to 12 AWG Solid Wire, 0.39 to 0.47 in Wire Strip Length, DIN Rail Mount, Polyamide, Green/Yellow, 0.205 in W x 3.673 in D x 2.736 in H
2002-3207 Application
Industrial and Ex e II Applications2002-3207 Item Features
- Without marker carrier
- 0.75 to 4 sq-mm/18 to 12 AWG solid conductor push-in termination, 0.25 to 4 sq-mm/22 to 12 AWG fine stranded conductor, 1 to 2.5 sq-mm/18 to 14 AWG fine stranded conductor with insulated ferrule, 1 to 2.5 sq-mm/18 to 14 AWG fine stranded conductor with ferrule push-in termination
2002-3207 Standards
ABS EN 60947 20-HG1941090-PDA|AEx UL 60079 20190704-E185892|ATEx EN 60079 PTB 03 ATEX 1162 U (II 2 G/D Ex e II bzw. I M 2 Ex e I)|BV EN 60947 38586/A0 BV|CCCEx CQST/CNEx CNCA-C23-01 2020312313000238|CCA EN 60947 NTR NL 7730|CSA C22.2 File No. 158 1536069|cULus Recognized|EAC TP TC 012/2011 RU C-DE. AM02.B. 00127/19|IECEx IEC 60079 IECEx PTB 03.0004 U (Ex eb IIC Gb or Ex eb I Mb)|IEC/EN 60664-1/60947-7-2|KEMA/KEUR EN 60947 71-107687|RoHS Compliant|UL 1059 File No. 20190731-E45172SKU #2005345Part Number #2002-3207UNSPSC39121410UPC04044918691277
