2002-3233

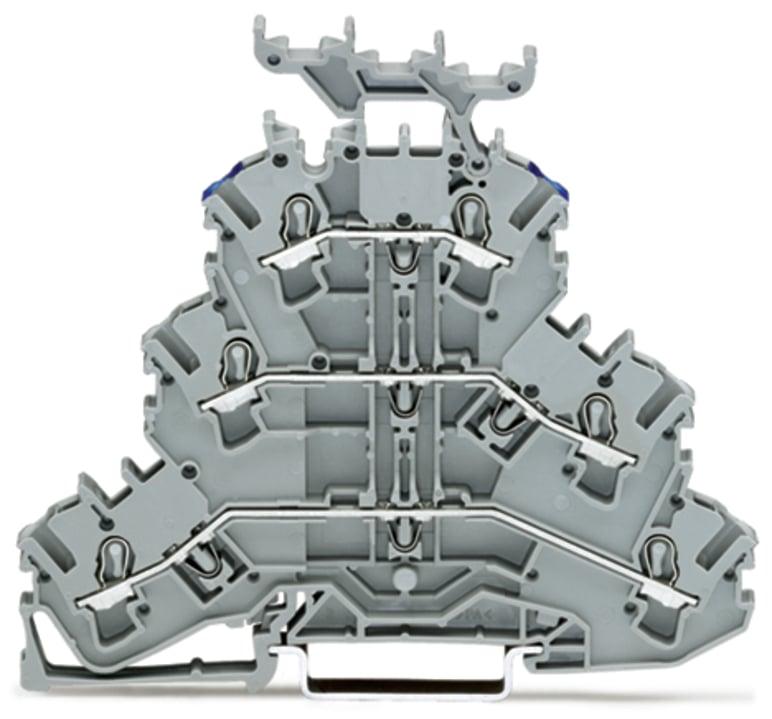

WAGO 2002-3233 TOPJOB S triple-deck terminal block
Part Number # 2002-3233
SKU # 2240675
Wago 2002-3233 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2002-3233 |
| SKU #: | 2240675 |
| Series: | 2002 |
| Suitable For Use With: | Terminal Block |
| Type: | Triple-Deck |
| Actuation type: | Push-in || Operating tool |
| Approvals per: | UL 1059 |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 93.3 mm / 3.673 inch |
| Height: | 3.67 in |
| Insulation material: | Polyamide (PA66) |
| Length: | 3.20 in |
| Material: | Polyamide |
| Mounting type: | DIN-35 rail |
| Nominal cross-section: | 2.5 mm² |
| Number of connection points: | 3 |
| Number of connection points (connection type): | 3 |
| Potential marking: | L/L/N |
| Rated current: | 24 A |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Total number of connection points: | 6 |
| Weight: | 17.528 g |
| Width: | 0.20 in, 5.2 mm / 0.205 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918989749 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2002-3233 TOPJOB S triple-deck terminal block
Brand: Wago
Part Number: 2002-3233
Additional Description: WAGO-2002-3233 TRIPLE-DECK TERMINAL BLOCK; THROUGH/THROUGH/THROUGH TERMINAL BLOCK; L/L/N; WITH MARKER CARRIER; SUITABLE FOR EX E II APPLICATIONS; BLUE CONDUCTOR ENTRY UPPER DECK; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM ; PUSH-IN CAGE CLAMP ; 2,50 MM ; GRAY 20023233
Catalog Description: Triple-deck terminal block; Through/through/through terminal block; L/L/N; with marker carrier; suitable for Ex e II applications; Blue conductor entry upper deck; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray
2002-3233 Application
Suitable for Ex e II applications2002-3233 Standards
RoHS CompliantSKU #2240675Part Number #2002-3233UNSPSC39121410UPC04044918989749
