Part Number # 2002-3237
SKU # 2222851
2002-3237

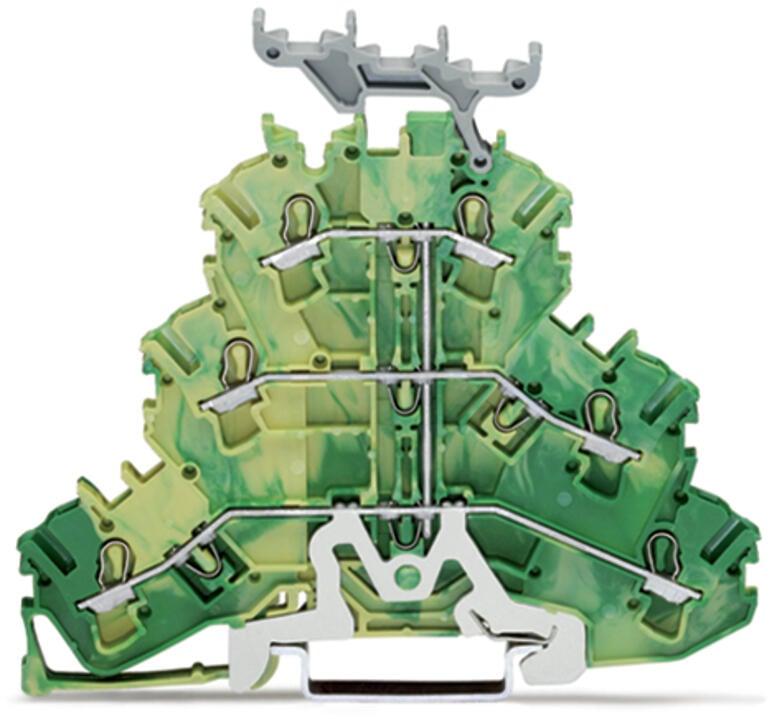

WAGO 2002-3237 TOPJOB S triple-deck ground terminal block
Part Number # 2002-3237
SKU # 2222851
Wago 2002-3237 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2002-3237 |
| SKU #: | 2222851 |
| Dimensions: | 3.673 in H x 0.205 in W x 3.201 in D |
| Type: | Operating Tool |
| Actuation type: | Push-in || Operating tool |
| Connection technology: | Push-in CAGE CLAMP® |
| Depth: | 93.3 mm / 3.673 inch |
| Nominal cross-section: | 2.5 mm² |
| Potential marking: | PE |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Weight: | 21.256 g |
| Width: | 5.2 mm / 0.205 inch |
| Wiring type: | Front-entry wiring |
| UNSPSC: | 39121410 |
| UPC: | 04044918989718 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2002-3237 TOPJOB S triple-deck ground terminal block
Brand: Wago
Part Number: 2002-3237
Additional Description: WAGO-2002-3237 TRIPLE-DECK TERMINAL BLOCK; 6-CONDUCTOR GROUND TERMINAL BLOCK; PE; WITH MARKER CARRIER; SUITABLE FOR EX E II APPLICATIONS; INTERNAL COMMONING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM ; PUSH-IN CAGE CLAMP ; 2,50 MM ; GREEN-YELLOW 20023237
Catalog Description: Triple-deck terminal block; 6-conductor ground terminal block; 2.5 mm²; PE; suitable for Ex e II applications; with marker carrier; internal commoning; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; green-yellow
2002-3237 Application
Suitable for Ex e II applications2002-3237 Standards
RoHS CompliantSKU #2222851Part Number #2002-3237UNSPSC39121410UPC04044918989718
Image provided may only be a representation of final product and may include optional equipment
