Part Number # 2002-3247
SKU # 2276127
Image provided may only be a representation of
final product and may include optional equipment
2002-3247

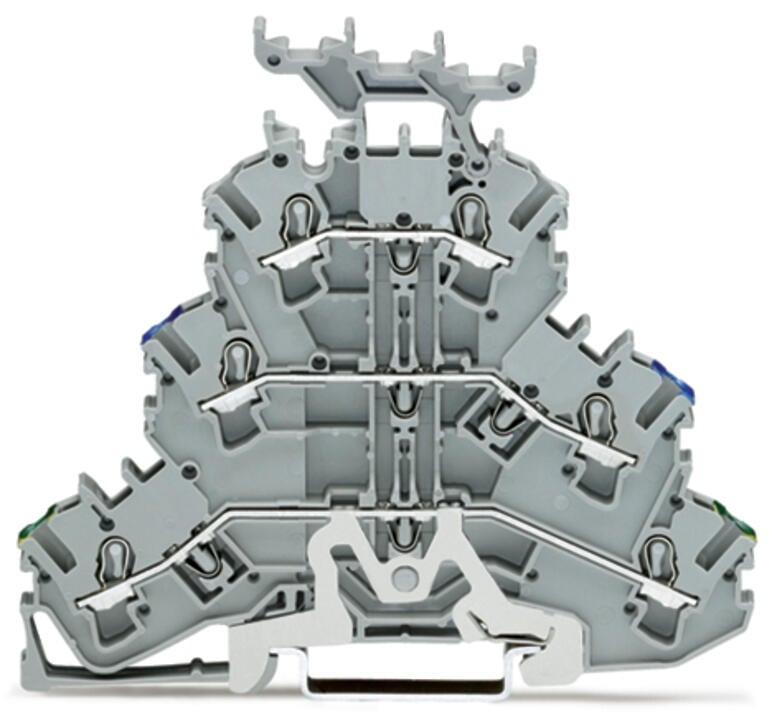

WAGO 2002-3247 TOPJOB S triple-deck terminal block
Part Number # 2002-3247
SKU # 2276127
Wago 2002-3247 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2002-3247 |
| SKU #: | 2276127 |
| Amperage Rating: | 24 A |
| Dimensions: | 3.673 in H x 0.205 in W x 3.201 in D |
| Number of Poles: | 3 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 22 to 12 AWG |
| Actuation type: | Push-in || Operating tool |
| Approvals per: | UL 1059 |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | DE |
| Depth: | 93.3 mm / 3.673 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 2.5 mm² |
| Number of connection points: | 3 |
| Number of connection points (connection type): | 3 |
| Potential marking: | PE/N/L |
| Rated current: | 24 A |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Total number of connection points: | 6 |
| Weight: | 20.356 g |
| Width: | 5.2 mm / 0.205 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918989626 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2002-3247 TOPJOB S triple-deck terminal block
Brand: Wago
Part Number: 2002-3247
WAGO-2002-3247 Topjob S 2002 Series Triple-Deck Ground Conductor/Through/Through Terminal Block, Number Of Terminals: 6, Wire Size: 22 - 12 AWG, Amperage Rating: 24 AMP, Voltage Rating: 500 V, Color: Gray, Mounting: 35 Din Rail, Connection: Cage Clamp S, Front-Entry Wiring, Strip Length: 0.43 IN, Dimensions: 0.205 IN Width X 3.681 IN Depth X 3.209 IN Height, RoHS Compliant, AEX E185892, CCA NL6387, CSA 154112-1536069, GL 6187-05HH, KEMA NL2116586.02, LR 91/20112(E6), PTB IECExPTB03.0004U And 03A
Additional Description: WAGO-2002-3247 TRIPLE-DECK TERMINAL BLOCK; GROUND CONDUCTOR/THROUGH/THROUGH TERMINAL BLOCK; PE/N/L; WITH MARKER CARRIER; SUITABLE FOR EX E II APPLICATIONS; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM ; PUSH-IN CAGE CLAMP ; 2,50 MM ; GRAY GRAY 20023247
Catalog Description: Triple-deck terminal block; Ground conductor/through/through terminal block; 2.5 mm²; PE/N/L; suitable for Ex e II applications; with marker carrier; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; gray
2002-3247 Application
Suitable for Ex e II applications2002-3247 Standards
CSA 22.2 No 158|ATEX: PTB 03 ATEX 1162 U / IECEx: PTB 03.0004U (Ex eb IIC Gb)|RoHS CompliantSKU #2276127Part Number #2002-3247UNSPSC39121410UPC04044918989626
