2002-4131
WAGO 2002-4131 Terminal Blocks
Part Number # 2002-4131
SKU # 2297500
$9.40 / Each
Typical price:$10.18 / Each
Wago 2002-4131 Key Features
Brand: | Wago |
---|---|
Part Number # : | 2002-4131 |
SKU #: | 2297500 |
Amperage Rating: | 20 A |

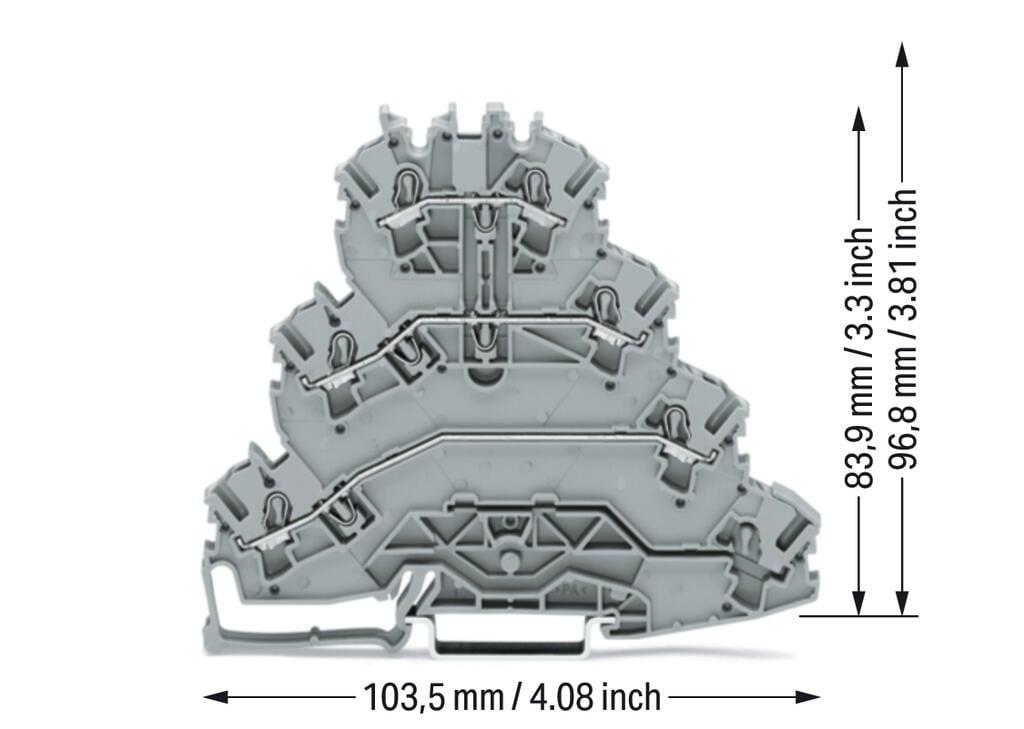

Dimensions: | 4.075 in H x 0.205 in W x 3.811 in D |
Number of Poles: | 3 |
Type: | Operating Tool |
Wire Size: | 22 to 12 AWG |
Actuation type: | Push-in || Operating tool |
Approvals per: | UL 1059 |
Color: | Gray |
Connection technology: | Push-in CAGE CLAMP® |
Connection type: | Clamp |
Country of origin: | CN |
Depth: | 103.5 mm / 4.075 inch |
Insulation material: | Polyamide (PA66) |
Material: | Polyamide |
Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
Nominal cross-section: | 2.5 mm² |
Number of connection points: | 2 || 2 |
Number of connection points (connection type): | 2 |
Potential marking: | L1 - L2 - L3 |
Rated current: | 20 A |
Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
Total number of connection points: | 6 |
Weight: | 20.992 g |
Width: | 5.2 mm / 0.205 inch |
Wiring type: | Front-entry wiring |
Manufacturer Name: | WAGO Corporation |
UNSPSC: | 39121410 |
UPC: | 04050821579427 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$9.40 / Each
Typical price:$10.18 / Each
Quantity:
- WAGO, 2002-4131, Deck Terminal Block, Operating Tool, 800 V, 20 A, 3 Pole, 22 to 12 AWG Wire, 0.39 to 0.47 in Wire Strip Length, DIN Rail Mounting, Clamp Connection, Polyamide, Gray, 4.075 in H x 0.205 in W x 3.811 in D Dimensions
2002-4131 Application
Suitable for Ex e II applications2002-4131 Standards
CSA 22.2 No 158|ATEX: PTB 03 ATEX 1162 U / IECEx: PTB 03.0004U (Ex eb IIC Gb)|RoHS CompliantSKU #2297500Part Number #2002-4131UNSPSC39121410UPC04050821579427
