2002-511

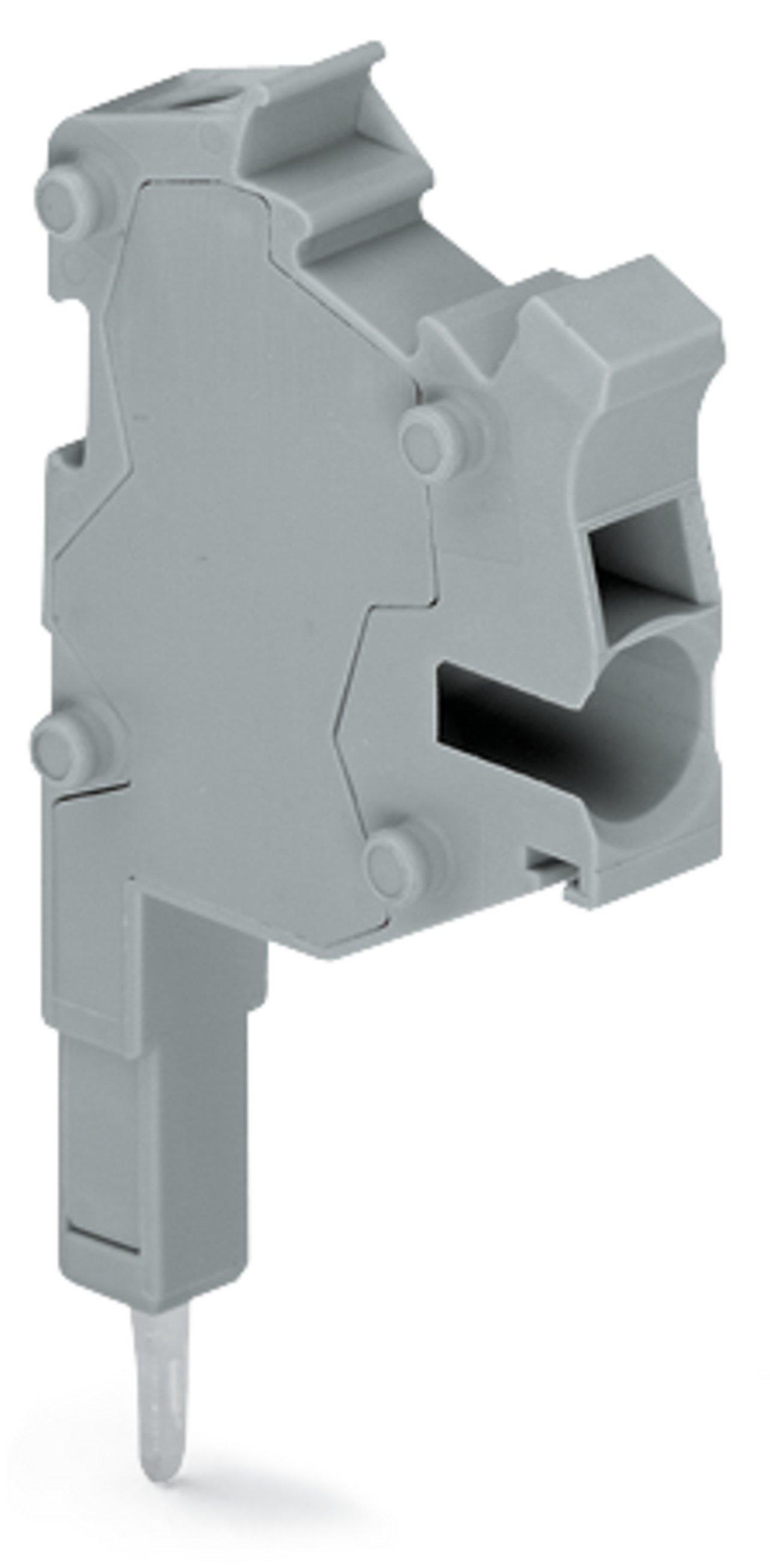

WAGO 2002-511 TOPJOB S modular connector
Part Number # 2002-511
SKU # 2189412
$3.72 / Each
Typical price:$4.15 / Each
Wago 2002-511 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2002-511 |
| SKU #: | 2189412 |
| Conductor Type: | Copper |
| Dimensions: | 0.205 in W x 10 mm L |
| Type: | Operating Tool |
| Actuation type: | Operating tool |
| Approvals per: | UL 1059 |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | DE |
| Insulation material: | Polyamide (PA66) |
| Module width: | 5.2 mm / 0.205 inch |
| Nominal cross-section: | 2.5 mm² |
| Rated current: | 24 A |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Total number of connection points: | 1 |
| Weight: | 2.745 g |
| Width: | 5.2 mm / 0.205 inch |
| Wiring type: | Side-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918924849 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3.72 / Each
Typical price:$4.15 / Each
Quantity:
WAGO 2002-511 TOPJOB S modular connector
Brand: Wago
Part Number: 2002-511
Additional Description: WAGO-2002-511 MODULAR TOPJOB S CONNECTOR; MODULAR; FOR JUMPER CONTACT SLOT; 1-POLE; 2,50 MM ; GRAY 1-POL 20020511
Catalog Description: Modular TOPJOB®S connector; modular; for jumper contact slot; 1-pole; 2,50 mm²; gray
2002-511 Standards
CSA 22.2 No 158|RoHS CompliantSKU #2189412Part Number #2002-511UNSPSC39121410UPC04044918924849
