2002-611

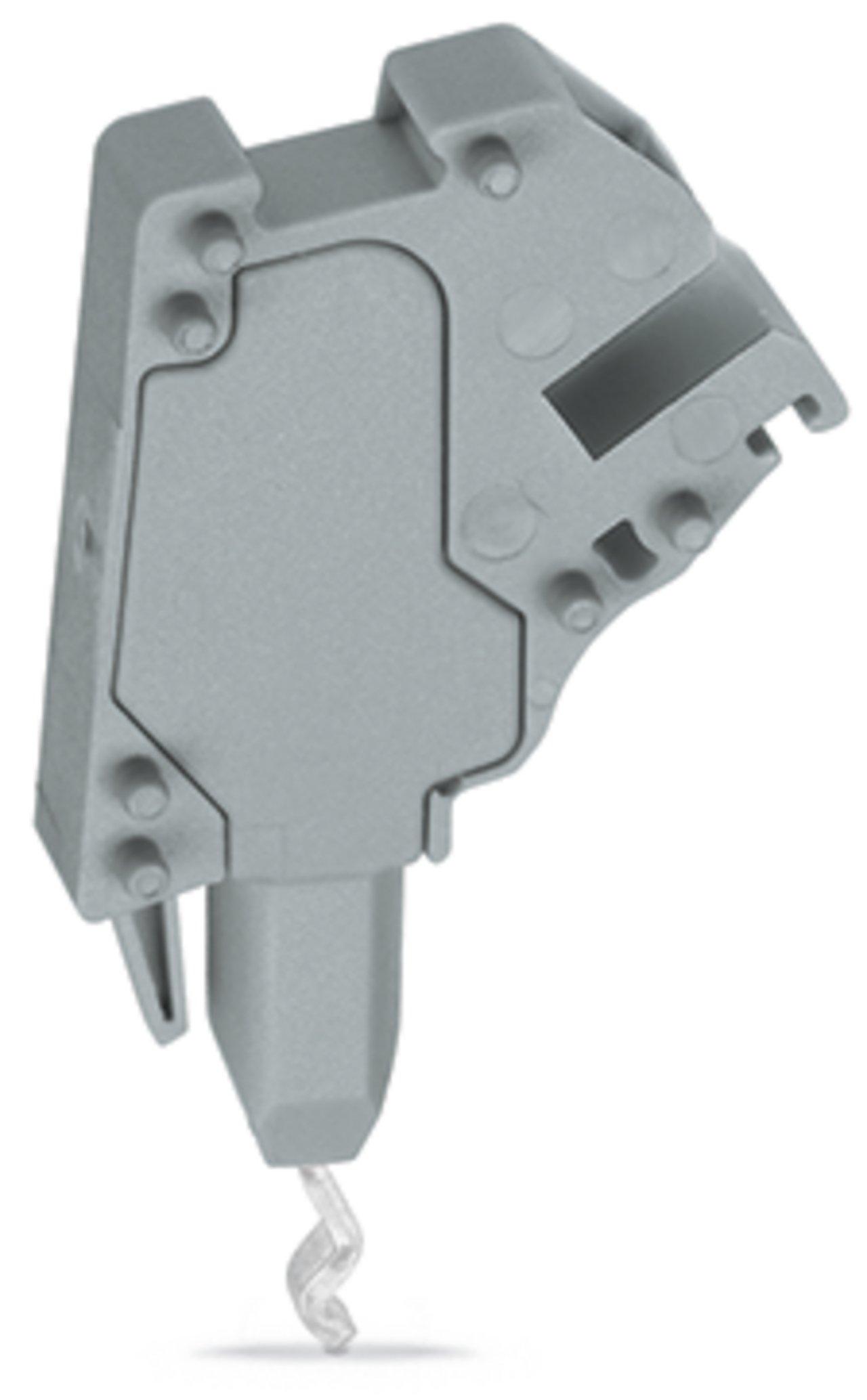

WAGO 2002-611 TOPJOB S modular connector
Part Number # 2002-611
SKU # 2297596
$116.00 / 25Each
Typical price:$125.75 / Each
Wago 2002-611 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2002-611 |
| SKU #: | 2297596 |
| Amperage Rating: | 18 A |
| Dimensions: | 0.76 in H x 0.2 in W x 0.76 in D |
| Type: | Operating Tool |
| Actuation type: | Operating tool |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 19.5 mm / 0.768 inch |
| Height: | 34.6 mm / 1.362 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Copper |
| Module width: | 5.2 mm / 0.205 inch |
| Nominal cross-section: | 2.5 mm² |
| Rated current: | 18 A |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Total number of connection points: | 1 |
| Weight: | 1.885 g |
| Width: | 5.2 mm / 0.205 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454997403 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$116.00 / 25Each
Typical price:$125.75 / Each
Quantity:
WAGO 2002-611 TOPJOB S modular connector
Brand: Wago
Part Number: 2002-611
Additional Description: WAGO-2002-611 TOPJOB S L-TYPE TEST PLUG MODULE; MODULAR; 1-POLE; 2,50 MM ; GRAY 20020611
Catalog Description: TOPJOB®S L-type test plug module; modular; 1-pole; 2,50 mm²; gray
2002-611 Standards
RoHS CompliantSKU #2297596Part Number #2002-611UNSPSC39121410UPC04045454997403
