2002-6308
WAGO 2002-6308 Shield terminal block
Part Number # 2002-6308
SKU # 2376296
$208.16 / 25Each
Typical price:$225.50 / Each
Wago 2002-6308 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2002-6308 |
| SKU #: | 2376296 |

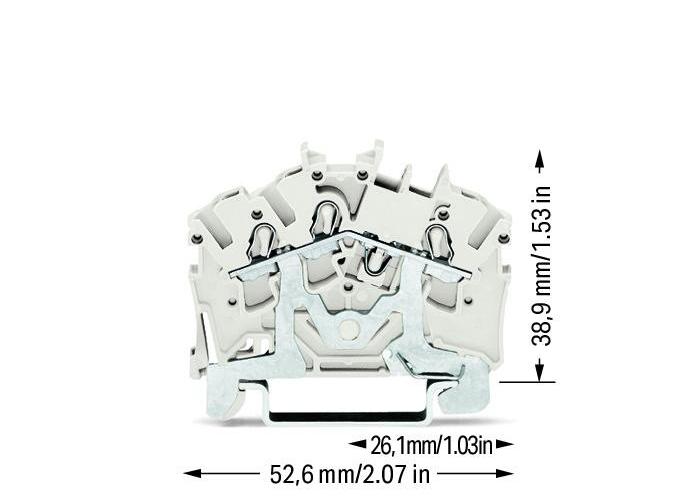

| Dimensions: | 2.071 in H x 0.205 in W x 1.531 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 22 to 12 AWG |
| Actuation type: | Push-in || Operating tool |
| Approvals per: | UL 1059 |
| Color: | White |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | CN |
| Depth: | 52.6 mm / 2.071 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 2.5 mm² |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Total number of connection points: | 3 |
| Weight: | 8.578 g |
| Width: | 5.2 mm / 0.205 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454752569 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$208.16 / 25Each
Typical price:$225.50 / Each
Quantity:
WAGO 2002-6308 Shield terminal block
Brand: Wago
Part Number: 2002-6308
Additional Description: WAGO-2002-6308 3-CONDUCTOR SHIELD TERMINAL BLOCK; 2.5 MM; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP; 2,50 MM; WHITE 20026308 2.5 MM ; SIDE AND CENTER MARKING; PUSH-IN CAGE CLAMP ; 2,50 MM ; WHITE 20026308
Catalog Description: 3-conductor shield terminal block; 2.5 mm²; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; white
2002-6308 Standards
IEC/EN 60947-7-2|RoHS CompliantSKU #2376296Part Number #2002-6308UNSPSC39121410UPC04045454752569
