Part Number # 2002-6407
SKU # 2133634
Image Disclaimers Message
2002-6407

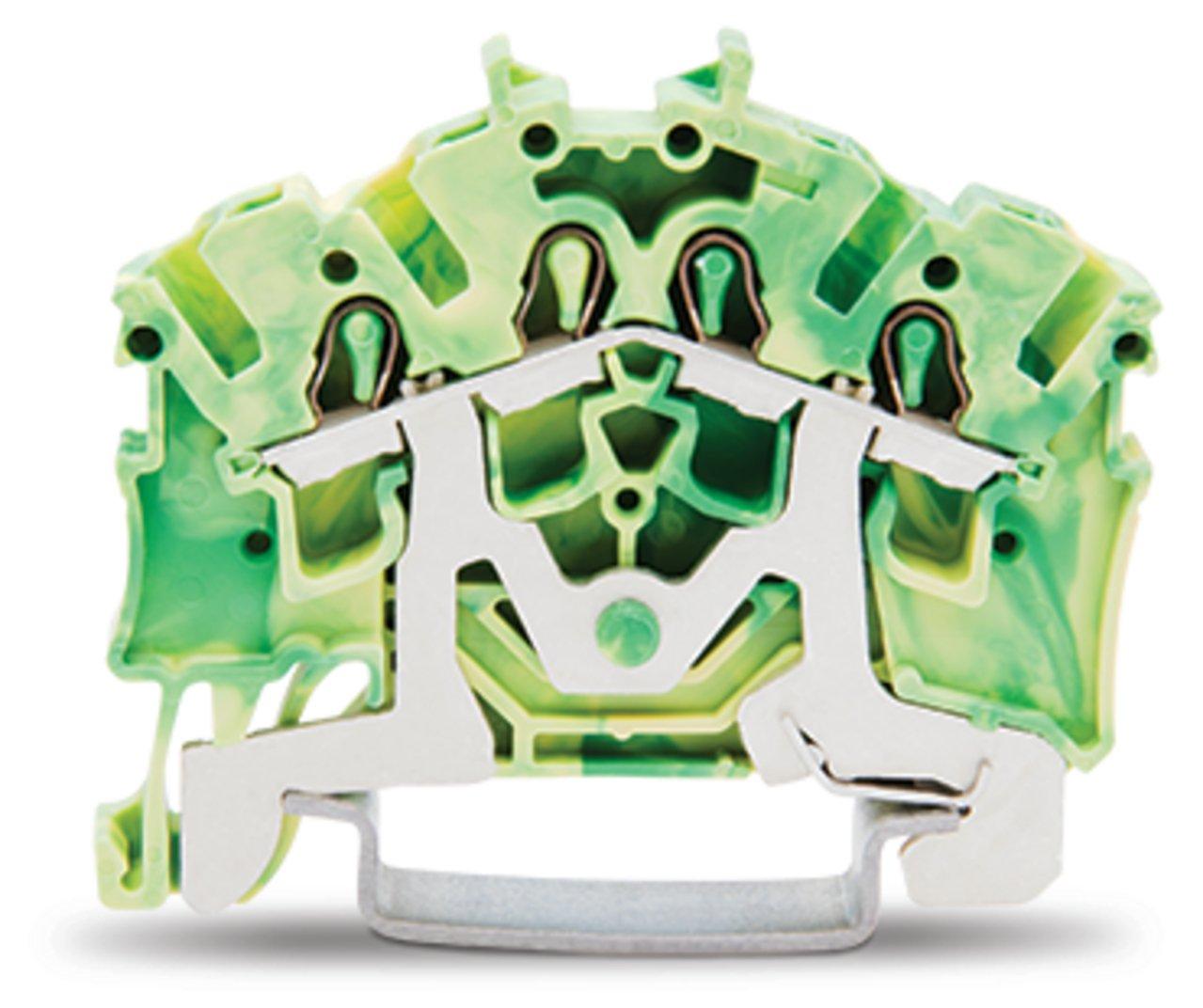

WAGO 2002-6407 TOPJOB S ground terminal block
Part Number # 2002-6407
SKU # 2133634
Wago 2002-6407 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2002-6407 |
| SKU #: | 2133634 |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Actuation type: | Push-in || Operating tool |
| Color: | Green-yellow, Green/Yellow |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | CN |
| Depth: | 52.6 mm / 2.071 inch |
| Insulation material: | Polyamide (PA66) |
| Mounting type: | DIN-35 rail |
| Nominal cross-section: | 2.5 mm² |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Total number of connection points: | 4 |
| Weight: | 8.865 g |
| Width: | 5.2 mm / 0.205 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918964913 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2002-6407 TOPJOB S ground terminal block
Brand: Wago
Part Number: 2002-6407
Additional Description: WAGO-2002-6407 4-CONDUCTOR GROUND TERMINAL BLOCK; 2.5 MM; SUITABLE FOR EX E II APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP; 2,50 MM; GREEN-YELLOW 20026407 2.5 MM ; SUITABLE FOR EX E II APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP ; 2,50 MM ; GREEN-YELLOW GREEN/YELLOW 20026407
Catalog Description: 4-conductor ground terminal block; 2.5 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; green-yellow
2002-6407 Application
Suitable for Ex e II applicationsSKU #2133634Part Number #2002-6407UNSPSC39121410UPC04044918964913
