Specifications
Brand: Wago
Actuation type: Push-in || Operating tool
Approvals per: UL 1059
Color: Orange
Connection technology: Push-in CAGE CLAMP®
Country of origin: DE
Depth: 52.3 mm / 2.059 inch
Insulation material: Polyamide (PA66)
Mounting type: DIN-35 rail
Nominal cross-section: 4 mm²
Rated current: 32 A
Solid conductor: 0.5 … 6 mm² / 20 … 10 AWG
Total number of connection points: 2
Weight: 6.325 g
Width: 6.2 mm / 0.244 inch
Wiring type: Front-entry wiring
UNSPSC: 39121410
UPC: 04017332010986

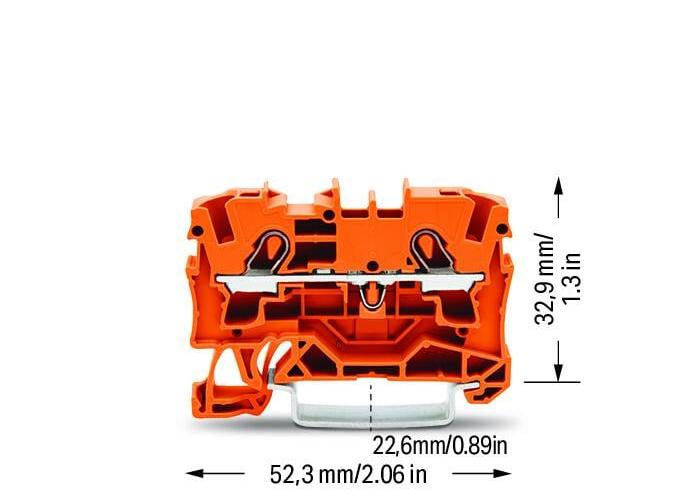

WAGO 2004-1202 TOPJOB S feedthrough terminal block
Additional Description: WAGO-2004-1202 2-CONDUCTOR THROUGH TERMINAL BLOCK; 4 MM; SUITABLE FOR EX E II APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP; 4,00 MM; ORANGE 20041202 4 MM ; SUITABLE FOR EX E II APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP ; 4,00 MM ; ORANGE 20041202
Catalog Description: 2-conductor through terminal block; 4 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 4,00 mm²; orange
