Part Number # 2004-1211/1000-401
SKU # 2302460
Image Disclaimers Message
2004-1211/1000-401

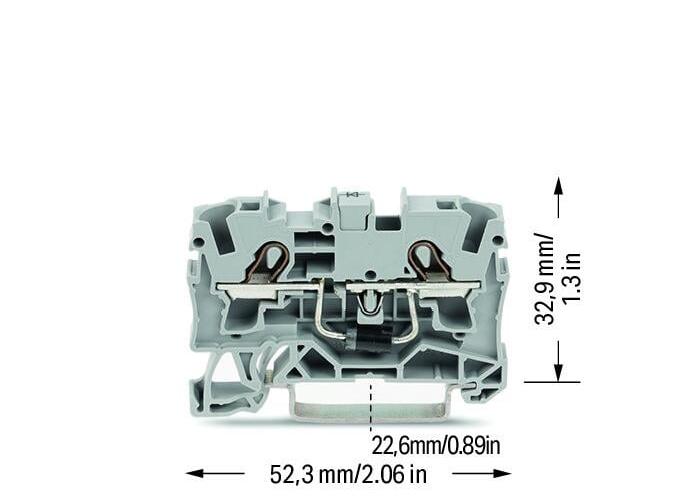

WAGO 2004-1211/1000-401 Component terminal block
Part Number # 2004-1211/1000-401
SKU # 2302460
Wago 2004-1211/1000-401 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2004-1211/1000-401 |
| SKU #: | 2302460 |
| Amperage Rating: | 1.5 A |
| Dimensions: | 2.059 in H x 0.244 in W x 1.295 in D |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 20 to 10 AWG |
| Actuation type: | Push-in || Operating tool |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | DE |
| Depth: | 52.3 mm / 2.059 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 4 mm² |
| Rated current: | 1.5 A |
| Solid conductor: | 0.5 … 6 mm² / 20 … 10 AWG |
| Total number of connection points: | 2 |
| Weight: | 8.296 g |
| Width: | 6.2 mm / 0.244 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04050821230953 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2004-1211/1000-401 Component terminal block
Brand: Wago
Part Number: 2004-1211/1000-401
Additional Description: WAGO-2004-1211/1000-401 COMPONENT TERMINAL BLOCK; 2-CONDUCTOR; WITH DIODE 1N5408; ANODE, RIGHT SIDE; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 4 MM; PUSH-IN CAGE CLAMP; 4,00 MM; GRAY 51240268 2-CONDUCTOR; WITH DIODE 1N5408; X 15 AND 35 X 7.5; 4 MM ; PUSH-IN CAGE CLAMP ; 4,00 MM ; GRAY 51240268
Catalog Description: Component terminal block; 2-conductor; with diode 1N5408; anode, right side; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; Push-in CAGE CLAMP®; 4,00 mm²; gray
2004-1211/1000-401 Standards
RoHS CompliantSKU #2302460Part Number #2004-1211/1000-401UNSPSC39121410UPC04050821230953
