2004-1404

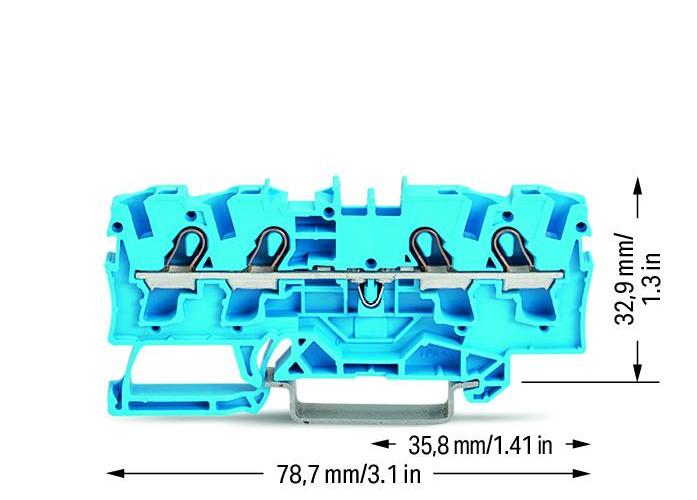

WAGO 2004-1404 TOPJOB S feedthrough terminal block
Part Number # 2004-1404
SKU # 2168392
Wago 2004-1404 Key Features
Brand: | Wago |
---|---|
Part Number # : | 2004-1404 |
SKU #: | 2168392 |
Amperage Rating: | 32 A |
Dimensions: | 3.098 in H x 0.244 in W x 1.555 in D |
Number of Poles: | 1 |
Type: | Operating Tool |
Wire Size: | 20 to 10 AWG |
Actuation type: | Push-in || Operating tool |
Approvals per: | UL 1059 |
Color: | Blue |
Connection technology: | Push-in CAGE CLAMP® |
Connection type: | Clamp |
Country of origin: | DE |
Depth: | 78.7 mm / 3.098 inch |
Insulation material: | Polyamide (PA66) |
Material: | Polyamide |
Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
Nominal cross-section: | 4 mm² |
Rated current: | 32 A |
Solid conductor: | 0.5 … 6 mm² / 20 … 10 AWG |
Total number of connection points: | 4 |
Weight: | 10.605 g |
Width: | 6.2 mm / 0.244 inch |
Wiring type: | Front-entry wiring |
Manufacturer Name: | WAGO Corporation |
UNSPSC: | 39121410 |
UPC: | 04017332071826 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2004-1404 TOPJOB S feedthrough terminal block
Brand: Wago
Part Number: 2004-1404
Additional Description: WAGO-2004-1404 4-CONDUCTOR THROUGH TERMINAL BLOCK; 4 MM; FOR EX E II AND EX I APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP; 4,00 MM; BLUE 20041404 4 MM ; FOR EX E II AND EX I APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP ; 4,00 MM ; BLUE BLUE 20041404
Catalog Description: 4-conductor through terminal block; 4 mm²; for Ex e II and Ex i applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 4,00 mm²; blue
2004-1404 Standards
CSA 22.2 No 158|ATEX: PTB 05 ATEX 1095 U / IECEx: PTB 05.0033U (Ex eb IIC Gb)|RoHS CompliantSKU #2168392Part Number #2004-1404UNSPSC39121410UPC04017332071826
