2004-1405

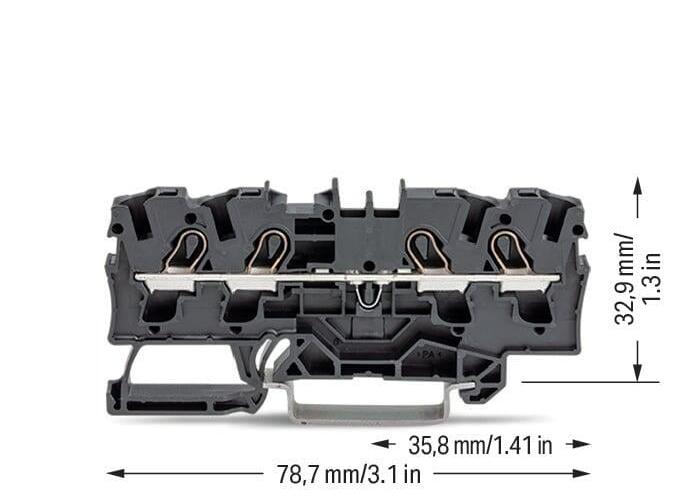

WAGO 2004-1405 TOPJOB S feedthrough terminal block
Part Number # 2004-1405
SKU # 2233690
Wago 2004-1405 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2004-1405 |
| SKU #: | 2233690 |
| Amperage Rating: | 32 A |
| Dimensions: | 3.098 in H x 0.244 in W x 1.555 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 20 to 10 AWG |
| Actuation type: | Push-in || Operating tool |
| Approvals per: | UL 1059 |
| Color: | Black |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 78.7 mm / 3.098 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 4 mm² |
| Rated current: | 32 A |
| Solid conductor: | 0.5 … 6 mm² / 20 … 10 AWG |
| Total number of connection points: | 4 |
| Weight: | 10.559 g |
| Width: | 6.2 mm / 0.244 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454537500 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2004-1405 TOPJOB S feedthrough terminal block
Brand: Wago
Part Number: 2004-1405
Additional Description: WAGO-2004-1405 4-CONDUCTOR THROUGH TERMINAL BLOCK; 4 MM; SUITABLE FOR EX E II APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP; 4,00 MM; BLACK 20041405 4 MM ; SUITABLE FOR EX E II APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP ; 4,00 MM ; BLACK BLACK 20041405
Catalog Description: 4-conductor through terminal block; 4 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 4,00 mm²; black
2004-1405 Application
Suitable for Ex e II applications2004-1405 Standards
CSA 22.2 No 158|ATEX: PTB 05 ATEX 1095 U / IECEx: PTB 05.0033U (Ex eb IIC Gb)|RoHS CompliantSKU #2233690Part Number #2004-1405UNSPSC39121410UPC04045454537500
