Part Number # 2004-1407
SKU # 2168393
Image Disclaimers Message
2004-1407

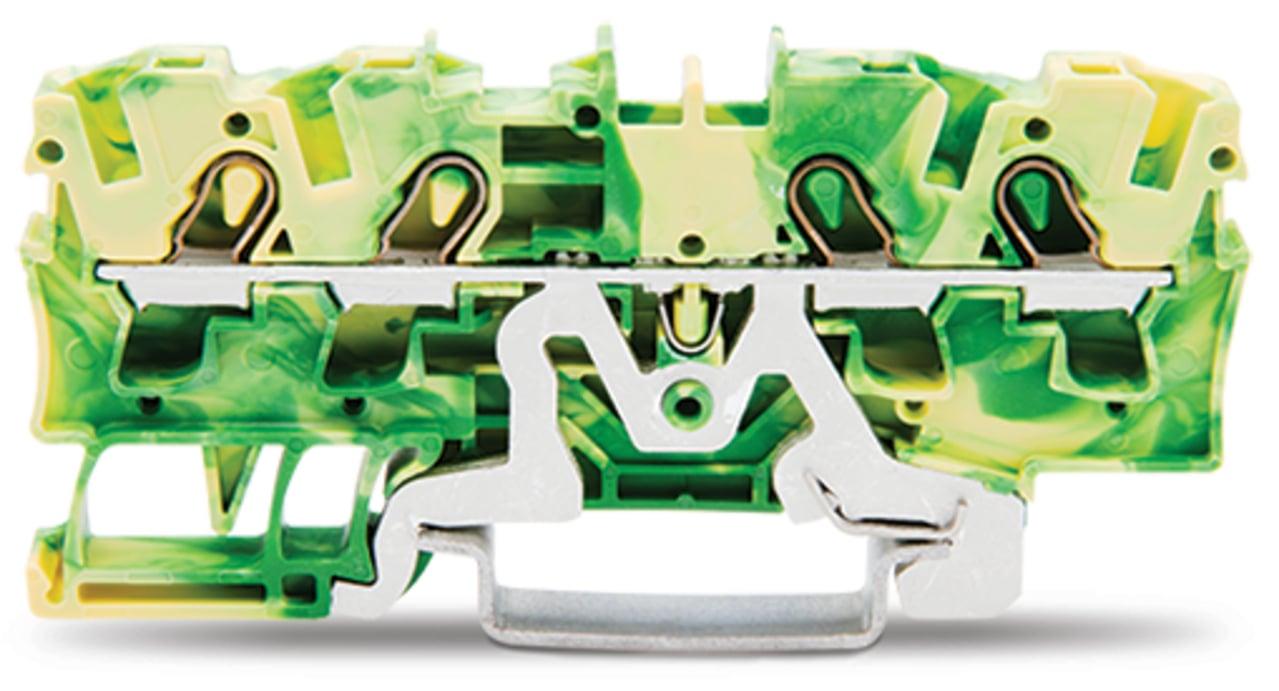

WAGO 2004-1407 TOPJOB S ground terminal block
Part Number # 2004-1407
SKU # 2168393
$7.48 / Each
Typical price:$9.42 / Each
Wago 2004-1407 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2004-1407 |
| SKU #: | 2168393 |
| Amperage Rating: | 32, 32 A |
| Dimensions: | 1.299in H x 0.244 in W x 3.11 in D |
| Series: | 2004 |
| Type: | 1-Level |
| Wire Size: | 20 to 10, 20 to 10 AWG |
| Actuation type: | Push-in || Operating tool |
| Color: | Green-yellow, Green/Yellow |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Cage Clamp |
| Country of origin: | DE |
| Depth: | 78.7 mm / 3.098 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | DIN Rail, DIN-35 rail |
| Nominal cross-section: | 4 mm² |
| Solid conductor: | 0.5 … 6 mm² / 20 … 10 AWG |
| Total number of connection points: | 4 |
| Weight: | 16.718 g |
| Width: | 6.2 mm / 0.244 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04017332071833 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$7.48 / Each
Typical price:$9.42 / Each
Quantity:
- WAGO Ground Terminal Block, 1-Level, Series: 2004, 800 V AC, 32 A, 20 to 10 AWG Wire, 0.47 in Wire Strip Length, DIN Rail Mounting, Cage Clamp Connection, Polyamide, Green/Yellow, 1.299in H x 0.244 in W x 3.11 in D Dimensions
2004-1407 Application
For Applications Ranging from Standard Distribution and Control Panels, to Specialized Applications in Key Industries Such as Energy, Explosive Atmospheres, Material Handling, Maritime and Traction2004-1407 Item Features
- 4 terminals
- 8 KV measured shock voltage, 1 potential
- Front-entry wiring, center/side marking
- e+f wiring method
- Made of polyamide 66 (PA 66) insulation, copper conductor material
- Operating tool actuation
- 20 -10 AWG solid, 14 - 10 push-in termination, 20 - 12 fine-stranded, 18 AWG fine-stranded conductor with ferrule, push-in termination
- 3 deg pollution
- 4 sq-mm nominal cross section
- 32 A rated, 30 A UL/CSA, 800 VAC rated, 600 VAC UL/CSA
- https://www.youtube.com/watch?v=178VcP0Ui8s
2004-1407 Standards
ABS 05-HG476175/1-PDA|CCA NL6341|154112-1645436 CSA Certified|DNV E-10423|GL 26187-05HH|KEMA 2095948.02|LR 91/20112(E6)|PRS TE/1718/880590/08|PTB IECExPTB06.0003U and PTB05Atex1070U|RoHS Compliant|RosTest 8189158|URE45172 ListedSKU #2168393Part Number #2004-1407UNSPSC39121410UPC04017332071833
