Part Number # 2005-7645
SKU # 2308176
Image Disclaimers Message
2005-7645

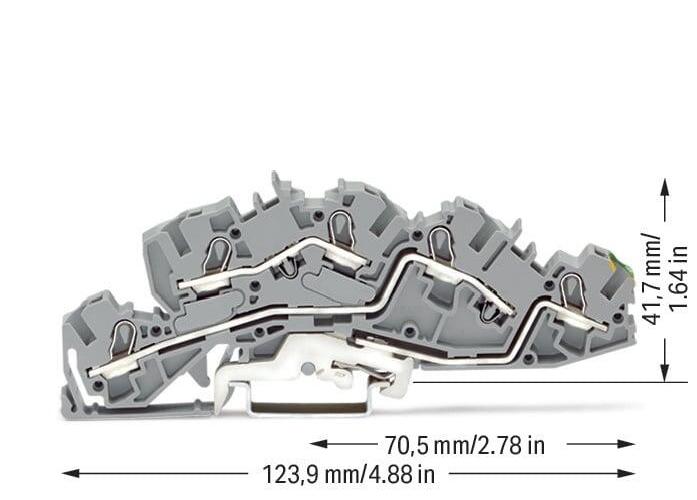

WAGO 2005-7645 Multilevel installation terminal block
Part Number # 2005-7645
SKU # 2308176
$512.00 / 50Each
Typical price:$554.50 / Each
Wago 2005-7645 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2005-7645 |
| SKU #: | 2308176 |
| Amperage Rating: | 32 A |
| Dimensions: | 4.878 in H x 0.244 in W x 1.642 in D |
| Number of Poles: | 3 |
| Temperature Rating (Degrees F): | -60 to 105 deg C |
| Type: | Operating Tool |
| Wire Size: | 10 AWG Solid Conductor, 10 AWG Fine-Stranded Conductor |
| Actuation type: | Push-in || Operating tool |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | CN |
| Depth: | 124 mm / 4.882 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Copper |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 4 mm² |
| Potential marking: | L/L/PE |
| Rated current: | 36 A |
| Solid conductor: | 0.5 … 6 mm² / 20 … 10 AWG |
| Total number of connection points: | 5 |
| Weight: | 30.248 g |
| Width: | 6.2 mm / 0.244 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143042253 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$512.00 / 50Each
Typical price:$554.50 / Each
Quantity:
WAGO 2005-7645 Multilevel installation terminal block
Brand: Wago
Part Number: 2005-7645
Additional Description: WAGO-2005-7645 MULTILEVEL INSTALLATION TERMINAL BLOCK; 6 MM; L/L/PE; PUSH-IN CAGE CLAMP; 4,00 MM; GRAY 51296674 BLOCK; 6 MM ; L/L/PE; PUSH-IN CAGE CLAMP ; 4,00 MM ; GRAY
Catalog Description: Multilevel installation terminal block; with operating slots; 4 mm²; L/L/PE; Push-in CAGE CLAMP®; 4,00 mm²; gray
2005-7645 Standards
IEC/EN 60947-7-1|RoHS CompliantSKU #2308176Part Number #2005-7645UNSPSC39121410UPC04055143042253
