2006-1601

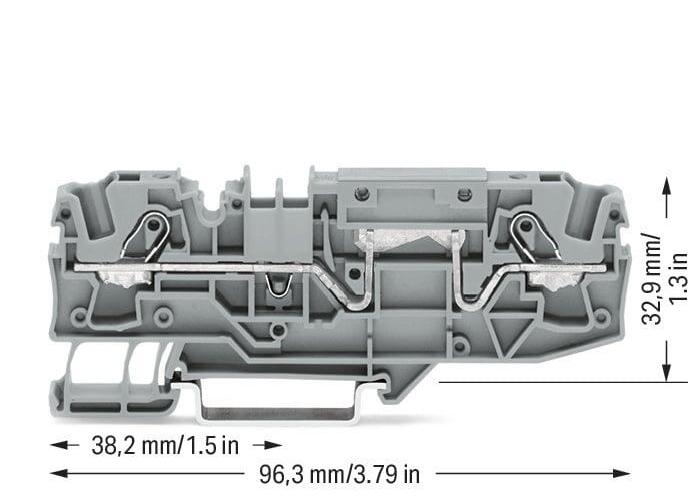

WAGO 2006-1601 TOPJOB S feedthrough terminal block
Part Number # 2006-1601
SKU # 2314475
$275.25 / 25Each
Typical price:$298.25 / Each
Wago 2006-1601 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2006-1601 |
| SKU #: | 2314475 |
| Amperage Rating: | 30 A |
| Dimensions: | 3.791 in H x 0.295 in W x 1.531 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 20 to 8 AWG |
| Actuation type: | Push-in || Operating tool |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | CN |
| Depth: | 96.3 mm / 3.791 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 6 mm² |
| Rated current: | 30 A |
| Solid conductor: | 0.5 … 10 mm² / 20 … 8 AWG |
| Total number of connection points: | 2 |
| Weight: | 19.500 g |
| Width: | 7.5 mm / 0.295 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04050821181637 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$275.25 / 25Each
Typical price:$298.25 / Each
Quantity:
- WAGO, 2006-1601, Conductor Terminal Block, Operating Tool, 800 V, 30 A, 1 Pole, 20 to 8 AWG Wire, 0.51 to 0.59 in Wire Strip Length, DIN Rail Mounting, Clamp Connection, Polyamide, Gray, 3.791 in H x 0.295 in W x 1.531 in D Dimensions
2006-1601 Standards
CSA 22.2 No 158|IEC/EN 60947-7-1|RoHS CompliantSKU #2314475Part Number #2006-1601UNSPSC39121410UPC04050821181637
