Part Number # 2006-1611/1000-541
SKU # 2244654
Image Disclaimers Message
2006-1611/1000-541

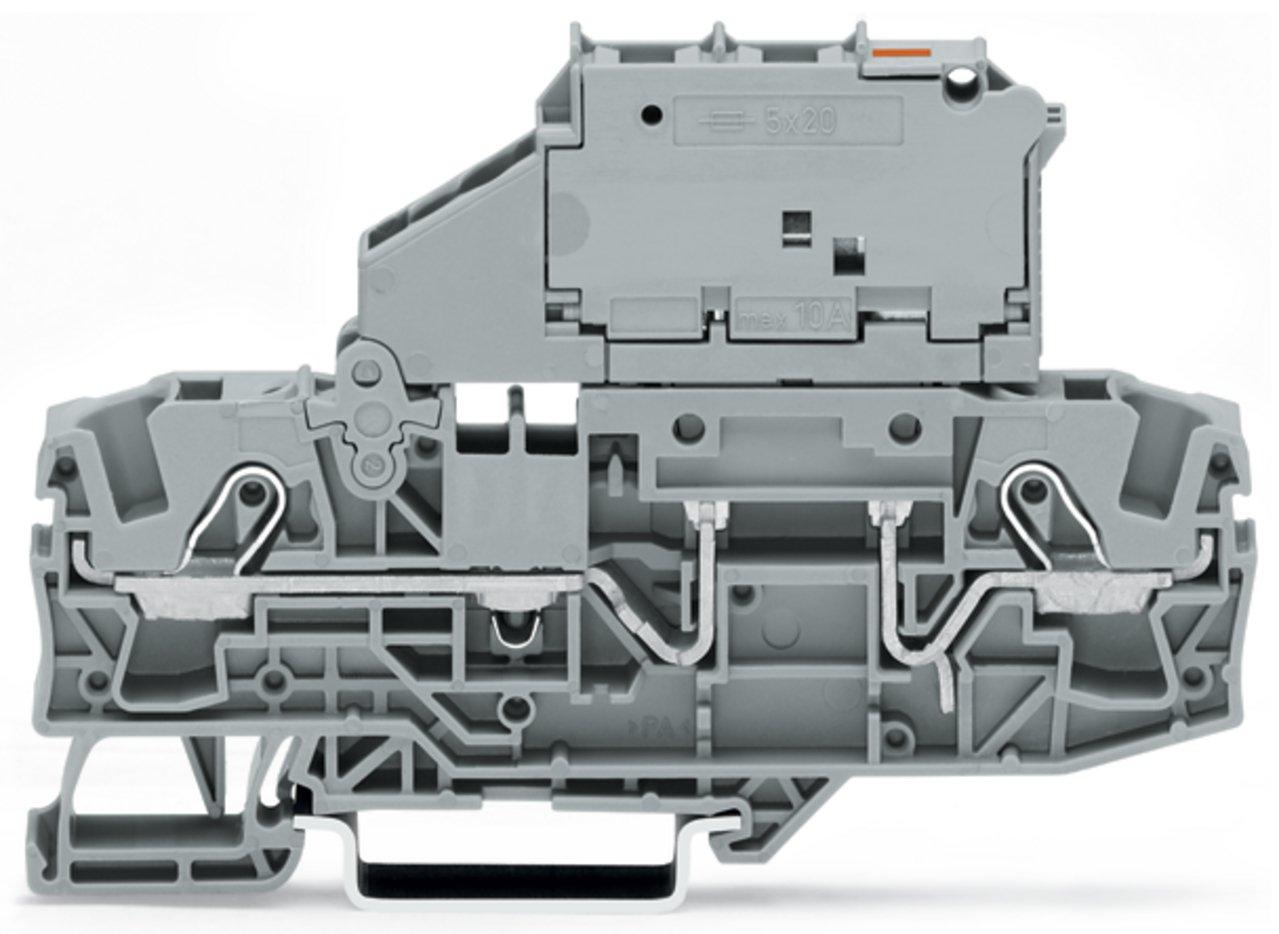

WAGO 2006-1611/1000-541 TOPJOB S fuse disconnect terminal block
Part Number # 2006-1611/1000-541
SKU # 2244654
Wago 2006-1611/1000-541 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2006-1611/1000-541 |
| SKU #: | 2244654 |
| Series: | 2006 |
| Suitable For Use With: | Terminal Block |
| Type: | 2-Conductor |
| Actuation type: | Push-in || Operating tool |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 96.3 mm / 3.791 inch |
| Height: | 3.79 in |
| Insulation material: | Polyamide (PA66) |
| Length: | 2.32 in |
| Material: | Polyamide |
| Mounting type: | DIN-35 rail |
| Nominal cross-section: | 6 mm² |
| Rated current: | 0.416666666666667 |
| Solid conductor: | 0.5 … 10 mm² / 20 … 8 AWG |
| Total number of connection points: | 2 |
| Weight: | 25.000 g |
| Width: | 0.29 in, 7.5 mm / 0.295 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454823962 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2006-1611/1000-541 TOPJOB S fuse disconnect terminal block
Brand: Wago
Part Number: 2006-1611/1000-541
Wago 2006-1611/1000-541 TOPJOB S Terminal Blocks, 2006 Series, Fuse Disconnect, 2 Terminals, Wire Size: 20 - 8 AWG, 10 AMP, 800 V, Gray, Cage Clamp, Front-Entry Wiring Connection, 0.295 IN Width X 3.791 IN Depth X 2.323 IN Height, Strip Length: 0.55 IN, RoHS Compliant, For 12 - 30 V 5 X 20 MM Miniature Metric Fuses
Additional Description: WAGO-2006-1611/1000-541 2-CONDUCTOR FUSE TERMINAL BLOCK; WITH PIVOTING FUSE HOLDER; FOR 5 X 20 MM MINIATURE METRIC FUSE; WITH BLOWN FUSE INDICATION BY LED; 12-30 V; FOR DIN-RAIL 35 X 15 AND 35 X7.5; 6 MM ; PUSH-IN CAGE CLAMP ; 6,00 MM ; GRAY 51210369
Catalog Description: 2-conductor fuse terminal block; with pivoting fuse holder; for 5 x 20 mm miniature metric fuse; with blown fuse indication by LED; 12 - 30 V; for DIN-rail 35 x 15 and 35 x 7.5; 6 mm²; Push-in CAGE CLAMP®; 6,00 mm²; gray
2006-1611/1000-541 Standards
RoHS CompliantSKU #2244654Part Number #2006-1611/1000-541UNSPSC39121410UPC04045454823962
