Part Number # 2006-1611/1000-836
SKU # 2299212
Image Disclaimers Message
2006-1611/1000-836
WAGO 2006-1611/1000-836 TOPJOB S fuse disconnect terminal block
Part Number # 2006-1611/1000-836
SKU # 2299212
Wago 2006-1611/1000-836 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2006-1611/1000-836 |
| SKU #: | 2299212 |
| Amperage Rating: | 10 A |
| Dimensions: | 3.791 in H x 0.295 in W x 2.323 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 20 to 8 AWG |
| Actuation type: | Push-in || Operating tool |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | DE |
| Depth: | 96.3 mm / 3.791 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 6 mm² |
| Rated current: | 0.416666666666667 |
| Solid conductor: | 0.5 … 10 mm² / 20 … 8 AWG |
| Total number of connection points: | 2 |
| Weight: | 25.350 g |
| Width: | 7.5 mm / 0.295 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454824020 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2006-1611/1000-836 TOPJOB S fuse disconnect terminal block
Brand: Wago
Part Number: 2006-1611/1000-836

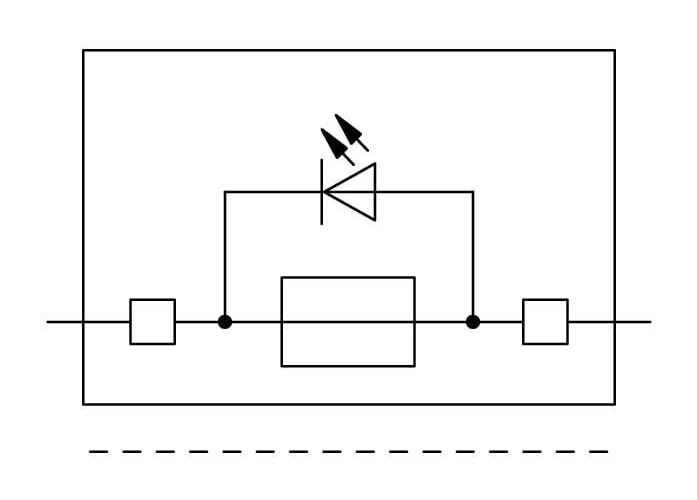

Additional Description: WAGO-2006-1611/1000-836 2-CONDUCTOR FUSE TERMINAL BLOCK; WITH PIVOTING FUSE HOLDER; FOR 5 X 20 MM MINIATURE METRIC FUSE; WITH BLOWN FUSE INDICATION BY LED; 230 V; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 6 MM ; PUSH-IN CAGE CLAMP ; 6,00 MM ; GRAY LED 51210375
Catalog Description: 2-conductor fuse terminal block; with pivoting fuse holder; for 5 x 20 mm miniature metric fuse; with blown fuse indication by LED; 230 V; for DIN-rail 35 x 15 and 35 x 7.5; 6 mm²; Push-in CAGE CLAMP®; 6,00 mm²; gray
2006-1611/1000-836 Standards
CSA 22.2 No 158|IEC/EN 60947-7-3|RoHS CompliantSKU #2299212Part Number #2006-1611/1000-836UNSPSC39121410UPC04045454824020
