Part Number # 2006-1631/1099-867
SKU # 2331566
Image Disclaimers Message
2006-1631/1099-867

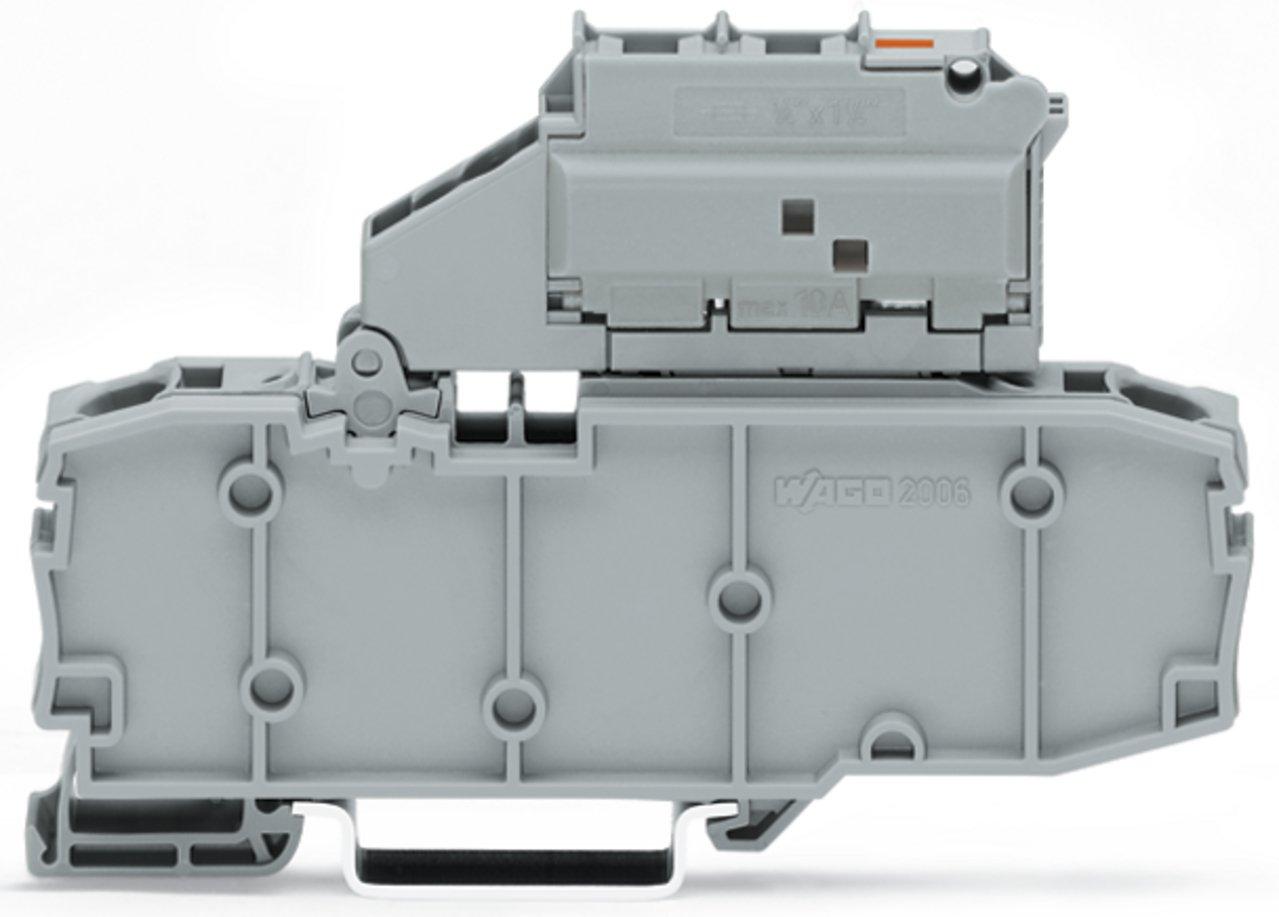

WAGO 2006-1631/1099-867 Fuse disconnect terminal block with pivoting fuse holder and end plate
Part Number # 2006-1631/1099-867
SKU # 2331566
Wago 2006-1631/1099-867 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2006-1631/1099-867 |
| SKU #: | 2331566 |
| Amperage Rating: | 10 A |
| Dimensions: | 3.791 in H x 0.409 in W x 2.323 in D |
| Temperature Rating (Degrees F): | -60 to 50 deg C |
| Type: | 2 Conductor |
| Wire Size: | 20 to 8 AWG |
| Actuation type: | Push-in || Operating tool |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | DE |
| Depth: | 96.3 mm / 3.791 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide 6.6 |
| Mounting type: | DIN-35 rail |
| Nominal cross-section: | 6 mm² |
| Rated current: | 0.416666666666667 |
| Solid conductor: | 0.5 … 10 mm² / 20 … 8 AWG |
| Total number of connection points: | 2 |
| Weight: | 29.350 g |
| Width: | 10.4 mm / 0.409 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04050821213321 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2006-1631/1099-867 Fuse disconnect terminal block with pivoting fuse holder and end plate
Brand: Wago
Part Number: 2006-1631/1099-867
Additional Description: WAGO-2006-1631/1099-867 2-CONDUCTOR FUSE TERMINAL BLOCK; WITH PIVOTING FUSE HOLDER; WITH END PLATE; FOR GLASS CARTRIDGE FUSE "" X 1 ""; WITH BLOWN FUSE INDICATION BY LED; 120 V; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 6 MM ; PUSH-IN CAGE CLAMP ; 6,00 MM ; GRAY 51238965
Catalog Description: 2-conductor fuse terminal block; with pivoting fuse holder; with end plate; for glass cartridge fuse ¼" x 1¼"; with blown fuse indication by LED; 120 V; for DIN-rail 35 x 15 and 35 x 7.5; 6 mm²; Push-in CAGE CLAMP®; 6,00 mm²; gray
2006-1631/1099-867 Standards
RoHS CompliantSKU #2331566Part Number #2006-1631/1099-867UNSPSC39121410UPC04050821213321
