2006-7114

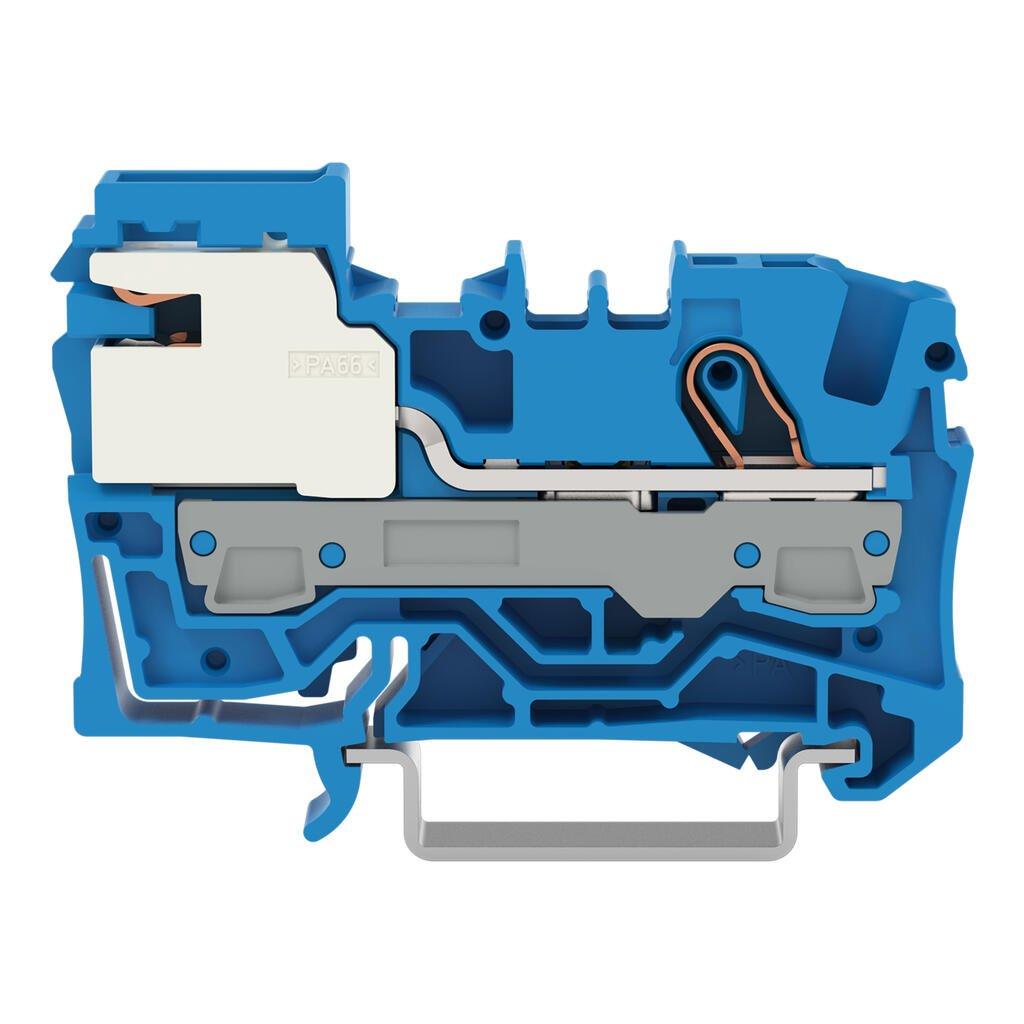

WAGO 2006-7114 Terminal Block
Part Number # 2006-7114
SKU # 2265635
$360.00 / 50Each
Typical price:$390.00 / Each
Wago 2006-7114 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2006-7114 |
| SKU #: | 2265635 |
| Amperage Rating: | 41 A |
| Dimensions: | 2.366 in H x 0.295 in W x 1.5 in D |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 20 to 8 AWG |
| Actuation type: | Push-in || Operating tool |
| Color: | Blue |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | PL |
| Depth: | 60 mm / 2.362 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 6 mm² |
| Rated current: | 51 A |
| Solid conductor: | 0.5 … 10 mm² / 20 … 8 AWG |
| Total number of connection points: | 1 |
| Weight: | 14.564 g |
| Width: | 7.5 mm / 0.295 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918989855 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$360.00 / 50Each
Typical price:$390.00 / Each
Quantity:
- WAGO, 2006-7114, Disconnect Terminal Block, Operating Tool, 250 V, 41 A, 1 Pole, 20 to 8 AWG Wire, 0.51 to 0.59 in Wire Strip Length, DIN Rail Mounting, Push-In Connection, -35 to 85 deg C, Polyamide, Blue, 2.366 in H x 0.295 in W x 1.5 in D Dimensions
2006-7114 Item Features
- Solid conductor 20 to 8 AWG, Solid conductor; push-in termination 14 to 8 AWG, Fine-stranded conductor 20 to 8 AWG, Fine-stranded conductor; with insulated ferrule 20 to 10 AWG, Fine-stranded conductor; with ferrule; push-in termination 16 to 10 AWG
2006-7114 Standards
IEC/EN 60947-7-1|RoHS CompliantSKU #2265635Part Number #2006-7114UNSPSC39121410UPC04044918989855
