2016-1304

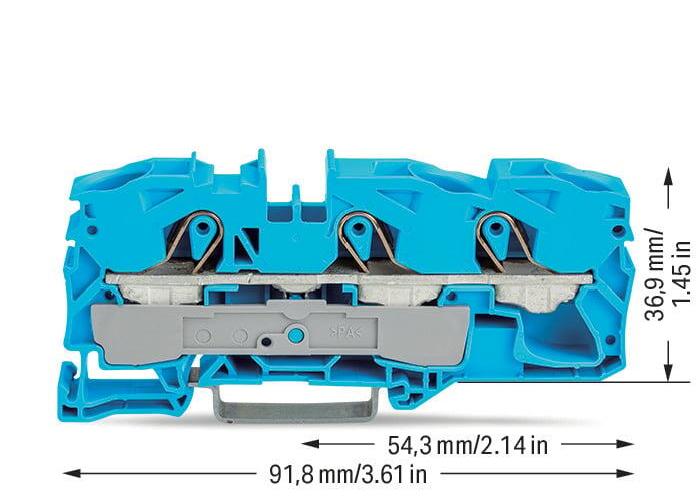

WAGO 2016-1304 TOPJOB S feedthrough terminal block
Part Number # 2016-1304
SKU # 2359616
Wago 2016-1304 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2016-1304 |
| SKU #: | 2359616 |
| Amperage Rating: | 76 A |
| Dimensions: | 3.622 in H x 0.472 in W x 1.713 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 20 to 6 AWG |
| Actuation type: | Push-in || Operating tool |
| Approvals per: | UL 1059 |
| Color: | Blue |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 91.8 mm / 3.622 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 16 mm² |
| Rated current: | 76 A |
| Solid conductor: | 0.5 … 16 mm² / 20 … 6 AWG |
| Total number of connection points: | 3 |
| Weight: | 30.192 g |
| Width: | 12 mm / 0.472 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04017332076739 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2016-1304 TOPJOB S feedthrough terminal block
Brand: Wago
Part Number: 2016-1304
Additional Description: WAGO-2016-1304 3-CONDUCTOR THROUGH TERMINAL BLOCK; 16 MM; FOR EX E II AND EX I APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP; 16,00 MM; BLUE 20161304 16 MM ; FOR EX E II AND EX I APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP ; 16,00 MM ; BLUE 20161304 MM WIDE; BLUE
Catalog Description: 3-conductor through terminal block; 16 mm²; for Ex e II and Ex i applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 16,00 mm²; blue
2016-1304 Standards
CSA 22.2 No 158|ATEX: PTB 05 ATEX 1031 U / IECEx: PTB 05.0015U (Ex eb IIC Gb)|RoHS CompliantSKU #2359616Part Number #2016-1304UNSPSC39121410UPC04017332076739
