Part Number # 2016-1307
SKU # 2201320
Image provided may only be a representation of
final product and may include optional equipment
2016-1307

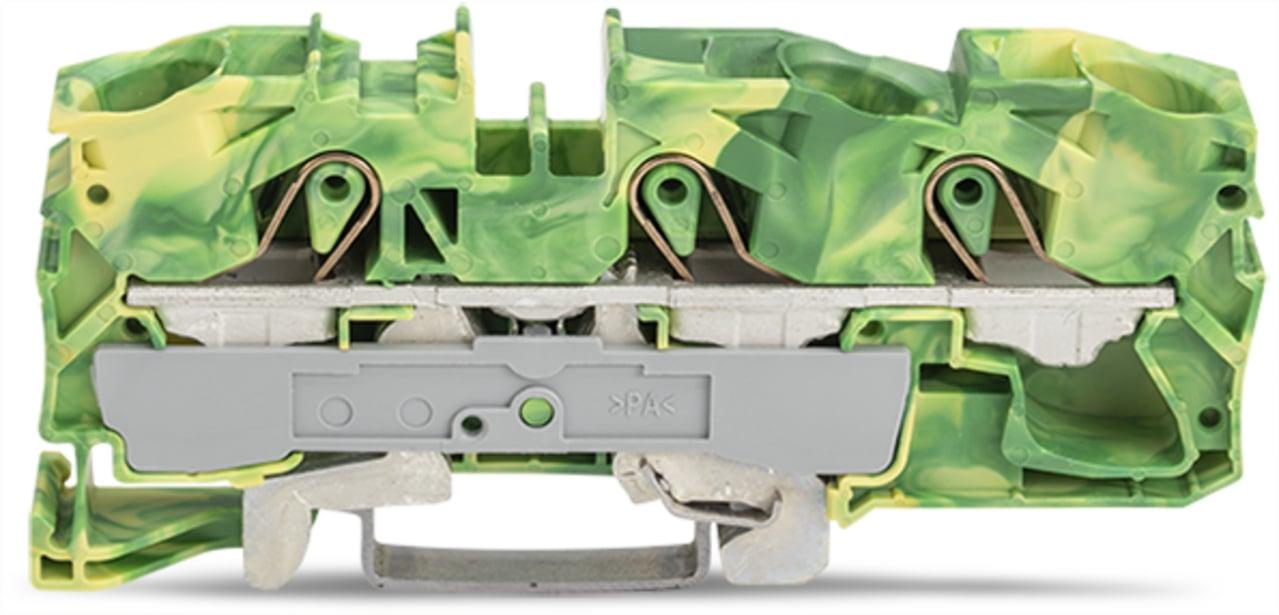

WAGO 2016-1307 TOPJOB S ground terminal block
Part Number # 2016-1307
SKU # 2201320
Wago 2016-1307 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2016-1307 |
| SKU #: | 2201320 |
| Amperage Rating: | 76, 76 A |
| Dimensions: | 1.435 in H x 0.472 in W x 3.622 in D |
| Series: | 2016 |
| Terminal Type: | Ground |
| Wire Size: | 20 to 4, 20 to 4 AWG |
| Actuation type: | Push-in || Operating tool |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | DE |
| Depth: | 91.8 mm / 3.622 inch |
| Insulation material: | Polyamide (PA66) |
| Mounting type: | Carrier Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 16 mm² |
| Solid conductor: | 0.5 … 16 mm² / 20 … 6 AWG |
| Total number of connection points: | 3 |
| Weight: | 46.231 g |
| Width: | 12 mm / 0.472 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04017332077200 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2016-1307 TOPJOB S ground terminal block
Brand: Wago
Part Number: 2016-1307
WAGO Ground Terminal Block, Series: 2016, 800 VAC, 76 A, 20 to 4 AWG Wire, 0.71 to 0.79 in Wire Strip Length, Ground Terminal, Carrier Rail Mounting, Push-In Connection, Green/Yellow, 1.435 in H x 0.472 in W x 3.622 in D Dimensions
Additional Description: WAGO-2016-1307 3-CONDUCTOR GROUND TERMINAL BLOCK; 16 MM ; SUITABLE FOR EX E II APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP ; 16,00 MM ; GREEN-YELLOW 20161307
Catalog Description: 3-conductor ground terminal block; 16 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 16,00 mm²; green-yellow
2016-1307 Application
For Ex e II applications2016-1307 Item Features
- 3 number conductor
- Front entry wiring
- Horizontal design
- Polyamide 66 insulating material
- Copper connectable conductor material
- Push-in actuation
2016-1307 Standards
RoHS CompliantSKU #2201320Part Number #2016-1307UNSPSC39121410UPC04017332077200
