Part Number # 2016-7114
SKU # 2432220
Image Disclaimers Message
2016-7114

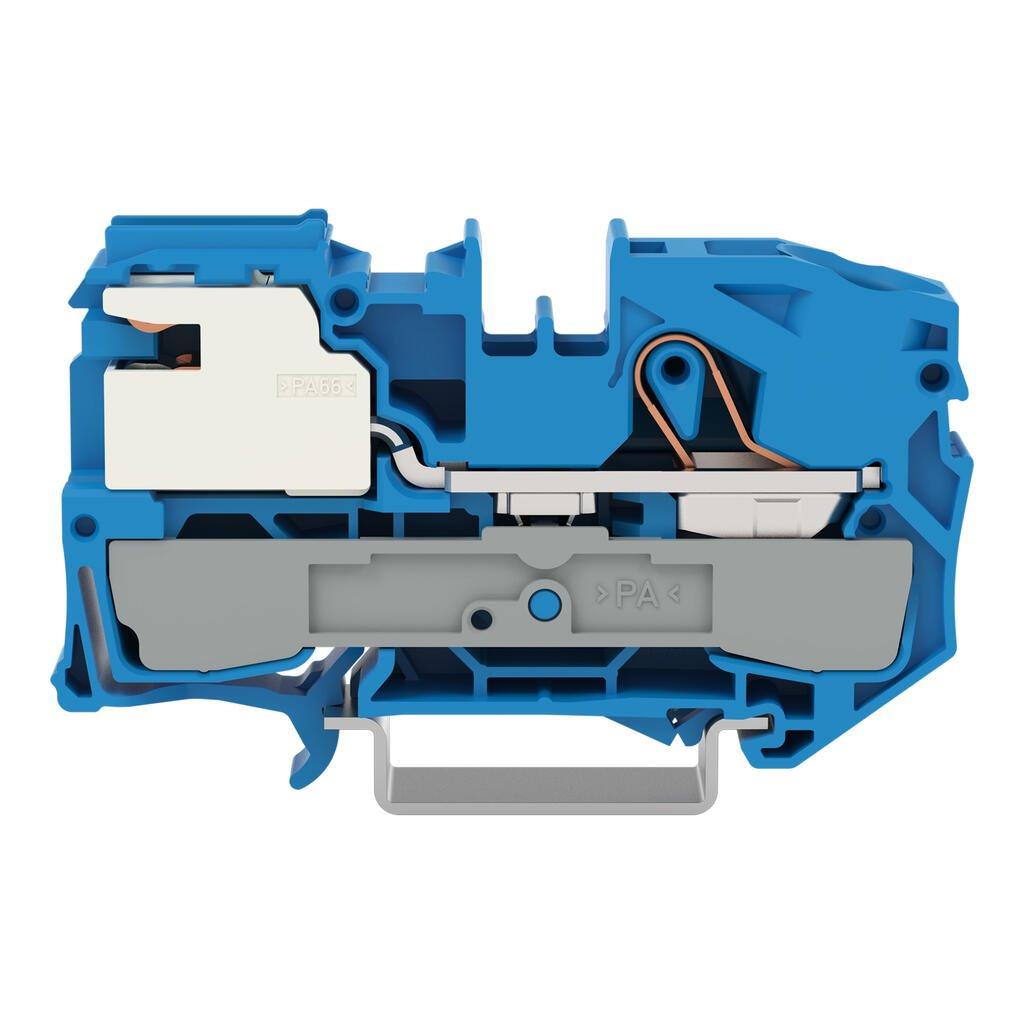

WAGO 2016-7114 Terminal Blocks
Part Number # 2016-7114
SKU # 2432220
$8.60 / Each
Typical price:$9.32 / Each
Wago 2016-7114 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2016-7114 |
| SKU #: | 2432220 |
| Amperage Rating: | 72 A |
| Dimensions: | 2.732 in H x 0.472 in W x 1.5 in D |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 14 to 6 AWG |
| Color: | Blue |
| Connection type: | Push-In |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918902595 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$8.60 / Each
Typical price:$9.32 / Each
Quantity:
- WAGO, 2016-7114, Disconnect Terminal Block, Operating Tool, 250 V, 72 A, 1 Pole, 14 to 6 AWG Wire, 0.71 to 0.79 in Wire Strip Length, DIN Rail Mounting, Push-In Connection, -35 to 85 deg C, Polyamide, Blue, 2.732 in H x 0.472 in W x 1.5 in D Dimensions
2016-7114 Item Features
- Solid conductor 20 to 6 AWG, Solid conductor; push-in termination 14 to 6 AWG, Fine-stranded conductor 20 to 4 AWG, Fine-stranded conductor; with insulated ferrule 20 to 6 AWG, Fine-stranded conductor; with ferrule; push-in termination 10 to 6 AWG
2016-7114 Standards
IEC/EN 60947-7-1|RoHS CompliantSKU #2432220Part Number #2016-7114UNSPSC39121410UPC04044918902595
