2020-103
WAGO 2020-103 X-COM S-Mini female plug
Part Number # 2020-103
SKU # 2349066
$5.07 / Each
Typical price:$5.49 / Each
Wago 2020-103 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2020-103 |
| SKU #: | 2349066 |
| Amperage Rating: | 13.5 A |

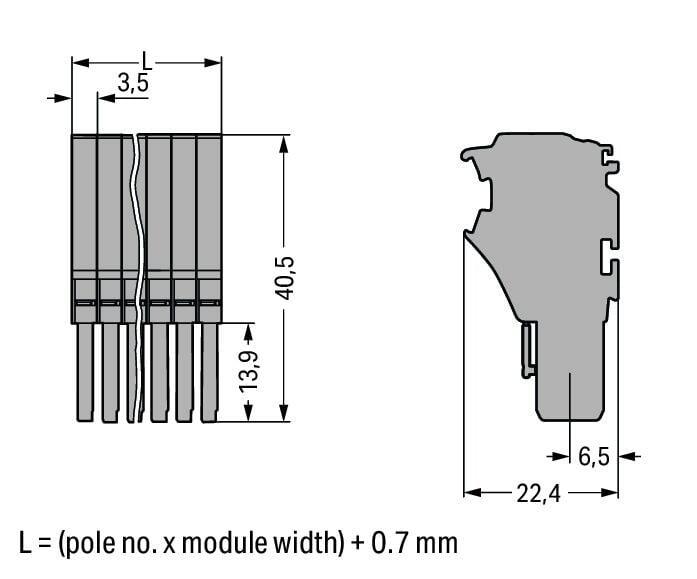

| Dimensions: | 1.594 in H x 0.441 in W x 0.882 in D |
| Number of Poles: | 3 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 24 to 16 AWG |
| Actuation type: | Operating tool || Push-in |
| Approvals per: | UL 1059 |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Connector (connection type): | For conductor |
| Country of origin: | CN |
| Depth: | 22.4 mm / 0.882 inch |
| Height: | 40.5 mm / 1.594 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Module width: | 3.5 mm / 0.138 inch |
| Nominal cross-section: | 1 mm² |
| Rated current: | 13.5 A |
| Solid conductor: | 0.14 … 1.5 mm² / 24 … 16 AWG |
| Total number of connection points: | 3 |
| Weight: | 7.130 g |
| Width: | 11.2 mm / 0.441 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121469 |
| UPC: | 04050821245032 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$5.07 / Each
Typical price:$5.49 / Each
Quantity:
WAGO 2020-103 X-COM S-Mini female plug
Brand: Wago
Part Number: 2020-103
Additional Description: WAGO-2020-103 1-CONDUCTOR FEMALE PLUG; 1.5 MM; 3-POLE; 1,50 MM; GRAY 51241394 TERMINAL BLOCKS; 1-CONDUCTOR; 3-POLE; 7.7 MM WIDE; GRAY
Catalog Description: 1-conductor female connector; Push-in CAGE CLAMP®; 1.5 mm²; Pin spacing 3.5 mm; 3-pole; 1,50 mm²; gray
2020-103 Standards
CSA 22.2 No 158|IEC/EN 61984|RoHS CompliantSKU #2349066Part Number #2020-103UNSPSC39121469UPC04050821245032
