Brand: Wago
2020-1201
WAGO 2020-1201 X-COM S-Mini carrier/feedthrough terminal block
Part Number # 2020-1201
SKU # 2234404
$1.80 / Each
Typical price:$2.01 / Each
Wago 2020-1201 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2020-1201 |
| SKU #: | 2234404 |
| Amperage Rating: | 13.5 A |

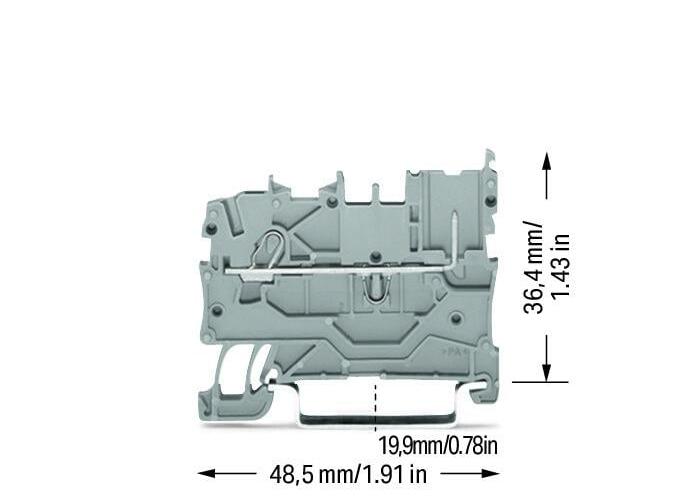

| Dimensions: | 1.909 in H x 0.138 in W x 1.433 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 24 to 16 AWG |
| Actuation type: | Operating tool || Push-in |
| Approvals per: | UL 1059 |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | CN |
| Depth: | 48.5 mm / 1.909 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 1 mm² |
| Rated current: | 13.5 A |
| Solid conductor: | 0.14 … 1.5 mm² / 24 … 16 AWG |
| Total number of connection points: | 1 |
| Weight: | 3.620 g |
| Width: | 3.5 mm / 0.138 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121469 |
| UPC: | 04050821145387 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1.80 / Each
Typical price:$2.01 / Each
Quantity:
WAGO 2020-1201 X-COM S-Mini carrier/feedthrough terminal block
Brand: Wago
Part Number: 2020-1201
Additional Description: WAGO-2020-1201 1-CONDUCTOR/1-PIN CARRIER TERMINAL BLOCK; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP ; 1,00 MM ; GRAY 51233857
Catalog Description: 1-conductor/1-pin carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,00 mm²; gray
2020-1201 Standards
CSA 22.2 No 158|IEC/EN 60947-7-1|RoHS CompliantSKU #2234404Part Number #2020-1201UNSPSC39121469UPC04050821145387
