2020-1307
WAGO 2020-1307 X-COM S-Mini ground carrier/feedthrough terminal block
Part Number # 2020-1307
SKU # 2349067
$3.80 / Each
Typical price:$4.12 / Each
Wago 2020-1307 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2020-1307 |
| SKU #: | 2349067 |

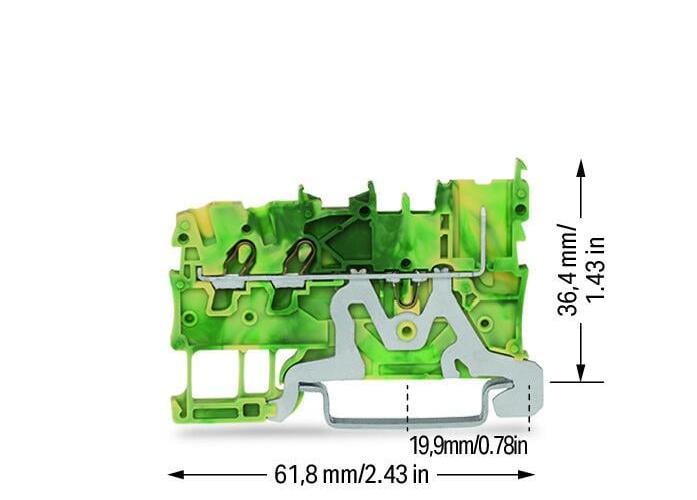

| Dimensions: | 2.433 in H x 0.138 in W x 1.433 in D |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 24 to 16 AWG |
| Actuation type: | Operating tool || Push-in |
| Color: | Green-yellow, Green/Yellow |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | CN |
| Depth: | 60.5 mm / 2.382 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 1 mm² |
| Number of connection points: | 1 |
| Number of connection points (connection type): | 2 |
| Solid conductor: | 0.14 … 1.5 mm² / 24 … 16 AWG |
| Total number of connection points: | 2 |
| Weight: | 6.570 g |
| Width: | 3.5 mm / 0.138 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121469 |
| UPC: | 04055143288118 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3.80 / Each
Typical price:$4.12 / Each
Quantity:
WAGO 2020-1307 X-COM S-Mini ground carrier/feedthrough terminal block
Brand: Wago
Part Number: 2020-1307
Additional Description: WAGO-2020-1307 2-CONDUCTOR/1-PIN GROUND CARRIER TERMINAL BLOCK; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP; 1,00 MM; GREEN-YELLOW 60257008 TERMINAL BLOCK; FOR DIN-RAIL 35 X CLAMP ; 1,00 MM ; GREEN-YELLOW 60257008
Catalog Description: 2-conductor/1-pin ground carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,00 mm²; green-yellow
2020-1307 Standards
IEC/EN 60947-7-2|RoHS CompliantSKU #2349067Part Number #2020-1307UNSPSC39121469UPC04055143288118
