Part Number # 2020-161
SKU # 2309418
Image Disclaimers Message
2020-161

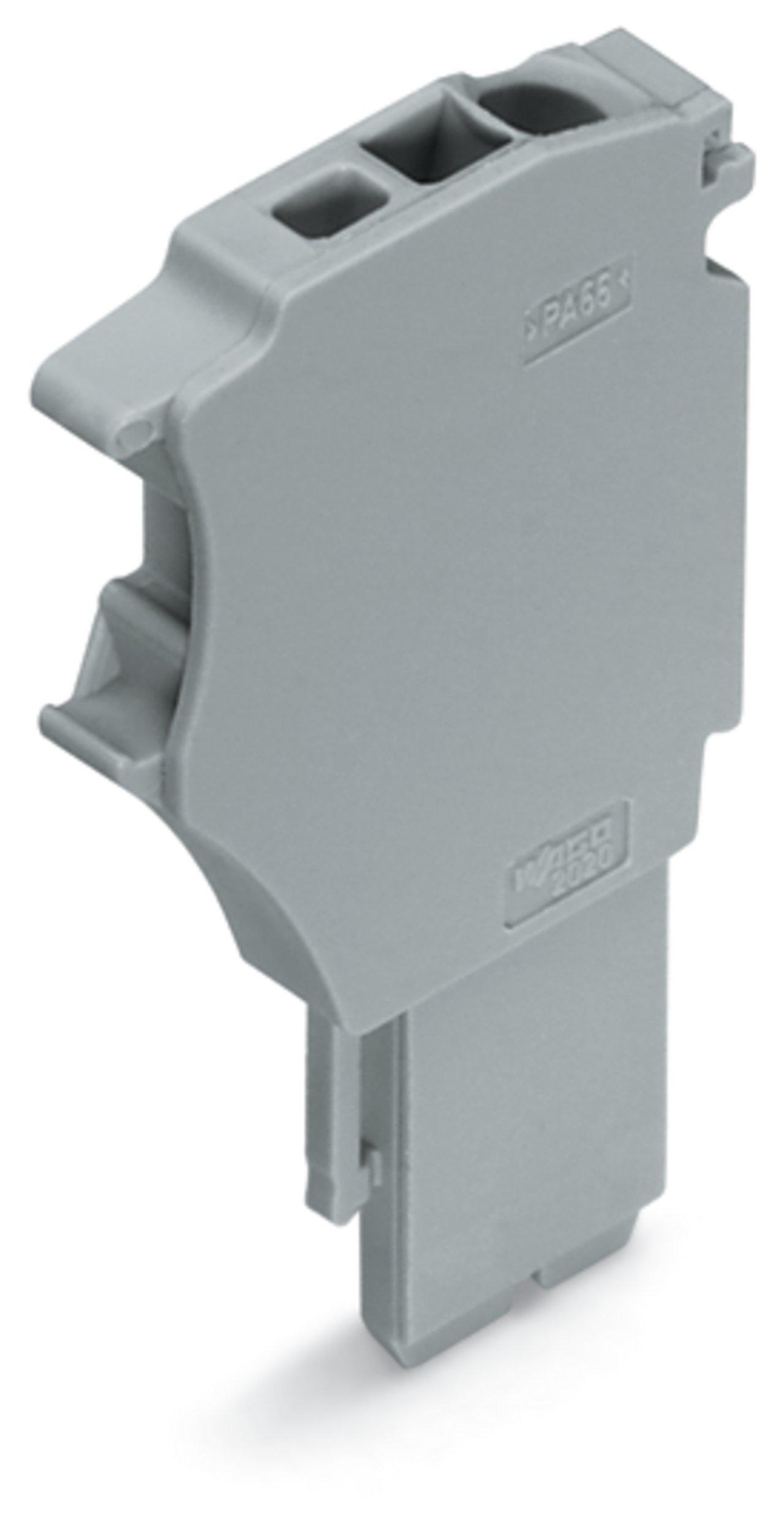

WAGO 2020-161 Start module for 1-conductor female connector
Part Number # 2020-161
SKU # 2309418
$2.09 / Each
Typical price:$2.26 / Each
Wago 2020-161 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2020-161 |
| SKU #: | 2309418 |
| Amperage Rating: | 13.5 A |
| Dimensions: | 1.594 in H x 0.138 in W x 0.882 in D |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 24 to 16 AWG |
| Actuation type: | Operating tool || Push-in |
| Approvals per: | UL 1059 |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Connector (connection type): | For conductor |
| Country of origin: | CN |
| Depth: | 22.4 mm / 0.882 inch |
| Height: | 40.5 mm / 1.594 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Nominal cross-section: | 1 mm² |
| Rated current: | 13.5 A |
| Solid conductor: | 0.14 … 1.5 mm² / 24 … 16 AWG |
| Total number of connection points: | 1 |
| Weight: | 2.690 g |
| Width: | 4.2 mm / 0.165 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121469 |
| UPC: | 04050821245131 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2.09 / Each
Typical price:$2.26 / Each
Quantity:
WAGO 2020-161 Start module for 1-conductor female connector
Brand: Wago
Part Number: 2020-161
Additional Description: WAGO-2020-161 START MODULE FOR 1-CONDUCTOR FEMALE CONNECTOR; WITH INTEGRATED END PLATE; 1.5 MM; 1-POLE; 1,50 MM; GRAY 51241403 CONNECTOR; WITH INTEGRATED END PLATE; 1.5 MM ; 1-POLE; 1,50 MM ; GRAY GRAY 51241403
Catalog Description: Start module for 1-conductor female connector; Push-in CAGE CLAMP®; 1.5 mm²; Pin spacing 3.5 mm; 1-pole; with integrated end plate; 1,50 mm²; gray
2020-161 Item Features
- One base module with an end plate
- Up to 14 end modules
2020-161 Standards
CSA 22.2 No 158|IEC/EN 61984|RoHS CompliantSKU #2309418Part Number #2020-161UNSPSC39121469UPC04050821245131
