Part Number # 2022-101/000-016
SKU # 2318794
Image Disclaimers Message
2022-101/000-016

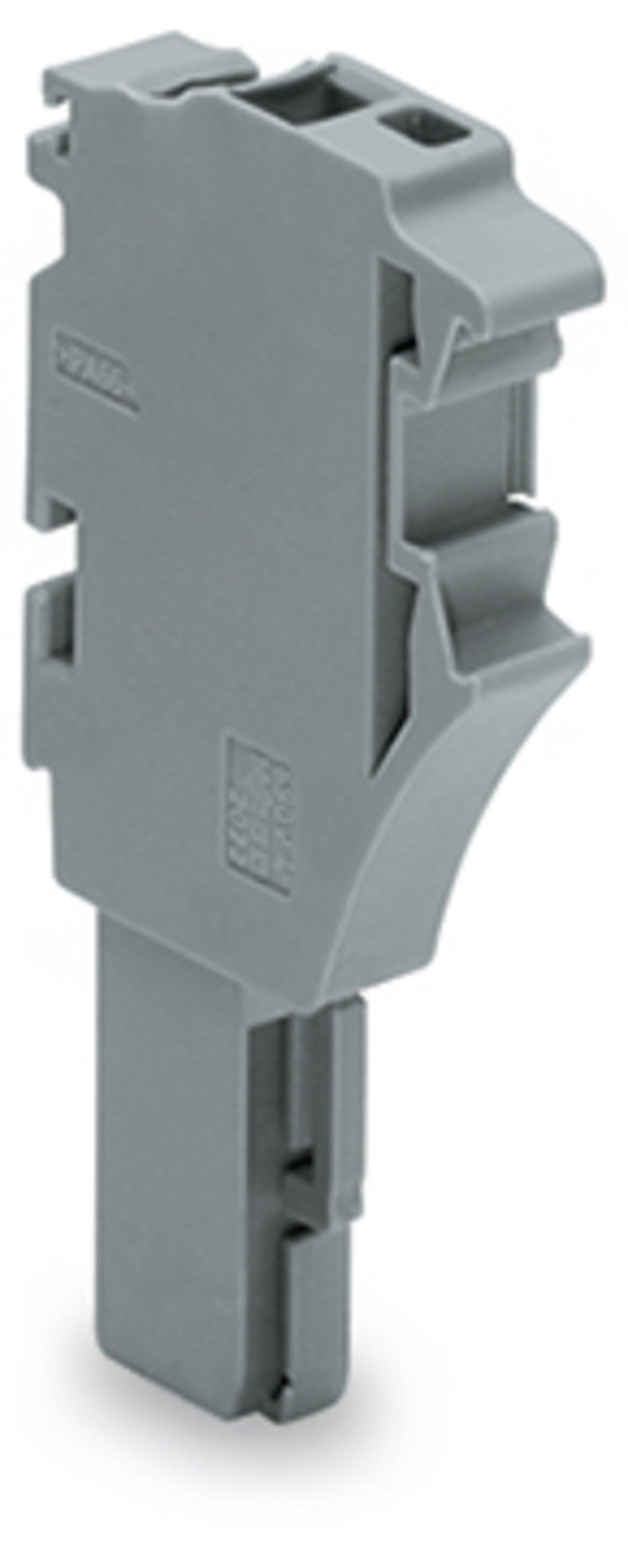

WAGO 2022-101/000-016 1-conductor female plug
Part Number # 2022-101/000-016
SKU # 2318794
$2.07 / Each
Typical price:$2.24 / Each
Wago 2022-101/000-016 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2022-101/000-016 |
| SKU #: | 2318794 |
| Dimensions: | 1.594 in H x 0.205 in W x 0.882 in D |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 22 to 12 AWG |
| Actuation type: | Operating tool || Push-in |
| Color: | Green-yellow, Green/Yellow |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Connector (connection type): | For conductor |
| Country of origin: | DE |
| Depth: | 22.4 mm / 0.882 inch |
| Height: | 40.5 mm / 1.594 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Module width: | 5.2 mm / 0.205 inch |
| Nominal cross-section: | 2.5 mm² |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Total number of connection points: | 1 |
| Weight: | 3.415 g |
| Width: | 5.2 mm / 0.205 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454705572 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2.07 / Each
Typical price:$2.24 / Each
Quantity:
WAGO 2022-101/000-016 1-conductor female plug
Brand: Wago
Part Number: 2022-101/000-016
Additional Description: WAGO-2022-101/000-016 1-CONDUCTOR FEMALE PLUG; 1-POLE; 2,50 MM; GREEN-YELLOW 51201198
Catalog Description: 1-conductor female connector; Push-in CAGE CLAMP®; 4 mm²; Pin spacing 5.2 mm; 1-pole; 4,00 mm²; green-yellow
2022-101/000-016 Standards
IEC/EN 61984|RoHS CompliantSKU #2318794Part Number #2022-101/000-016UNSPSC39121410UPC04045454705572
