Part Number # 2022-103
SKU # 2318827
Image Disclaimers Message
2022-103

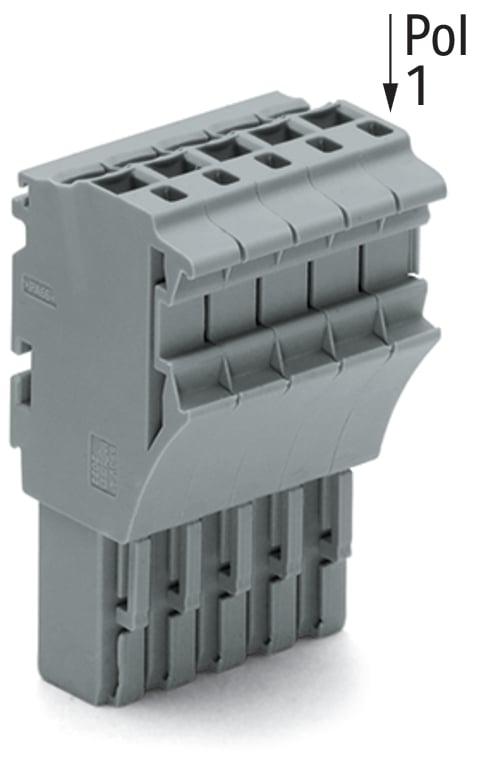

WAGO 2022-103 1-conductor female plug
Part Number # 2022-103
SKU # 2318827
$4.06 / Each
Typical price:$4.83 / Each
Wago 2022-103 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2022-103 |
| SKU #: | 2318827 |
| Amperage Rating: | 32 A |
| Dimensions: | 1.594 in H x 0.614 in W x 0.882 in D |
| Number of Poles: | 3 |
| Temperature Rating (Degrees F): | -60 to 105 deg C |
| Type: | 1 Conductor |
| Wire Size: | 22 to 12 AWG |
| Actuation type: | Operating tool || Push-in |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Connector (connection type): | For conductor |
| Country of origin: | CN |
| Depth: | 22.4 mm / 0.882 inch |
| Height: | 40.5 mm / 1.594 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide 6.6 |
| Module width: | 5.2 mm / 0.205 inch |
| Nominal cross-section: | 2.5 mm² |
| Rated current: | 24 A |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Total number of connection points: | 3 |
| Weight: | 9.785 g |
| Width: | 15.6 mm / 0.614 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04050821242758 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4.06 / Each
Typical price:$4.83 / Each
Quantity:
WAGO 2022-103 1-conductor female plug
Brand: Wago
Part Number: 2022-103
Additional Description: WAGO-2022-103 1-CONDUCTOR FEMALE PLUG; 2.5 MM; 3-POLE; 2,50 MM; GRAY 51241237
Catalog Description: 1-conductor female connector; Push-in CAGE CLAMP®; 4 mm²; Pin spacing 5.2 mm; 3-pole; 4,00 mm²; gray
2022-103 Standards
RoHS Compliant|CSA 22.2 No 158|IEC/EN 61984SKU #2318827Part Number #2022-103UNSPSC39121410UPC04050821242758
