Part Number # 2022-106/000-037
SKU # 2338499
Image Disclaimers Message
2022-106/000-037

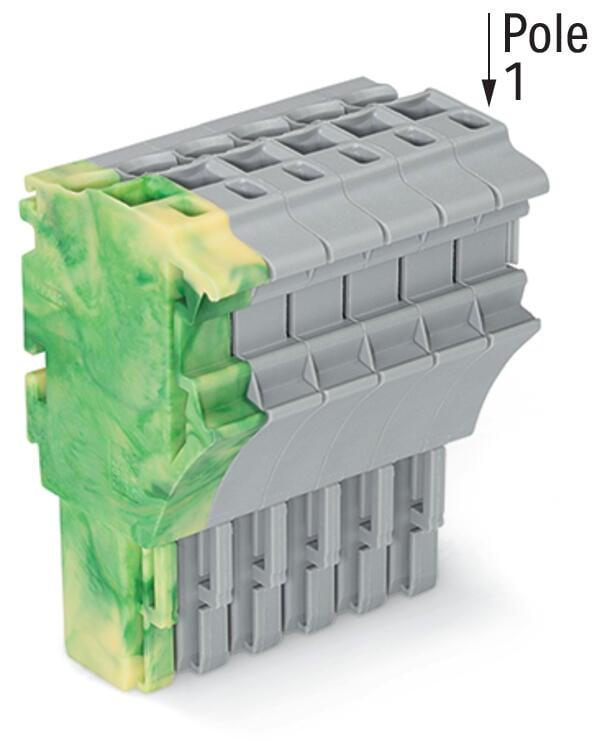

WAGO 2022-106/000-037 1-conductor female plug
Part Number # 2022-106/000-037
SKU # 2338499
$8.50 / Each
Typical price:$9.21 / Each
Wago 2022-106/000-037 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2022-106/000-037 |
| SKU #: | 2338499 |
| Amperage Rating: | 24 A |
| Dimensions: | 1.594 in H x 1.228 in W x 0.882 in D |
| Number of Poles: | 6 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 22 to 12 AWG |
| Actuation type: | Operating tool || Push-in |
| Color: | Gray/Green/Yellow, Green-yellow, gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Connector (connection type): | For conductor |
| Country of origin: | DE |
| Depth: | 22.4 mm / 0.882 inch |
| Height: | 40.5 mm / 1.594 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Module width: | 5.2 mm / 0.205 inch |
| Nominal cross-section: | 2.5 mm² |
| Rated current: | 24 A |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Total number of connection points: | 6 |
| Weight: | 19.940 g |
| Width: | 31.2 mm / 1.228 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454912994 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$8.50 / Each
Typical price:$9.21 / Each
Quantity:
- WAGO, 2022-106/000-037, 1-Conductor Female Connector, Operating Tool, 690 V, 24 A, 6 Pole, 22 to 12 AWG Wire, 0.39 to 0.47 in Wire Strip Length, Push-In Connection, -35 to 85 deg C, Polyamide, Gray/Green/Yellow, 1.594 in H x 1.228 in W x 0.882 in D Dimensions
2022-106/000-037 Standards
CSA 22.2 No 158|IEC/EN 61984|RoHS CompliantSKU #2338499Part Number #2022-106/000-037UNSPSC39121410UPC04045454912994
