Brand: Wago
2022-1201

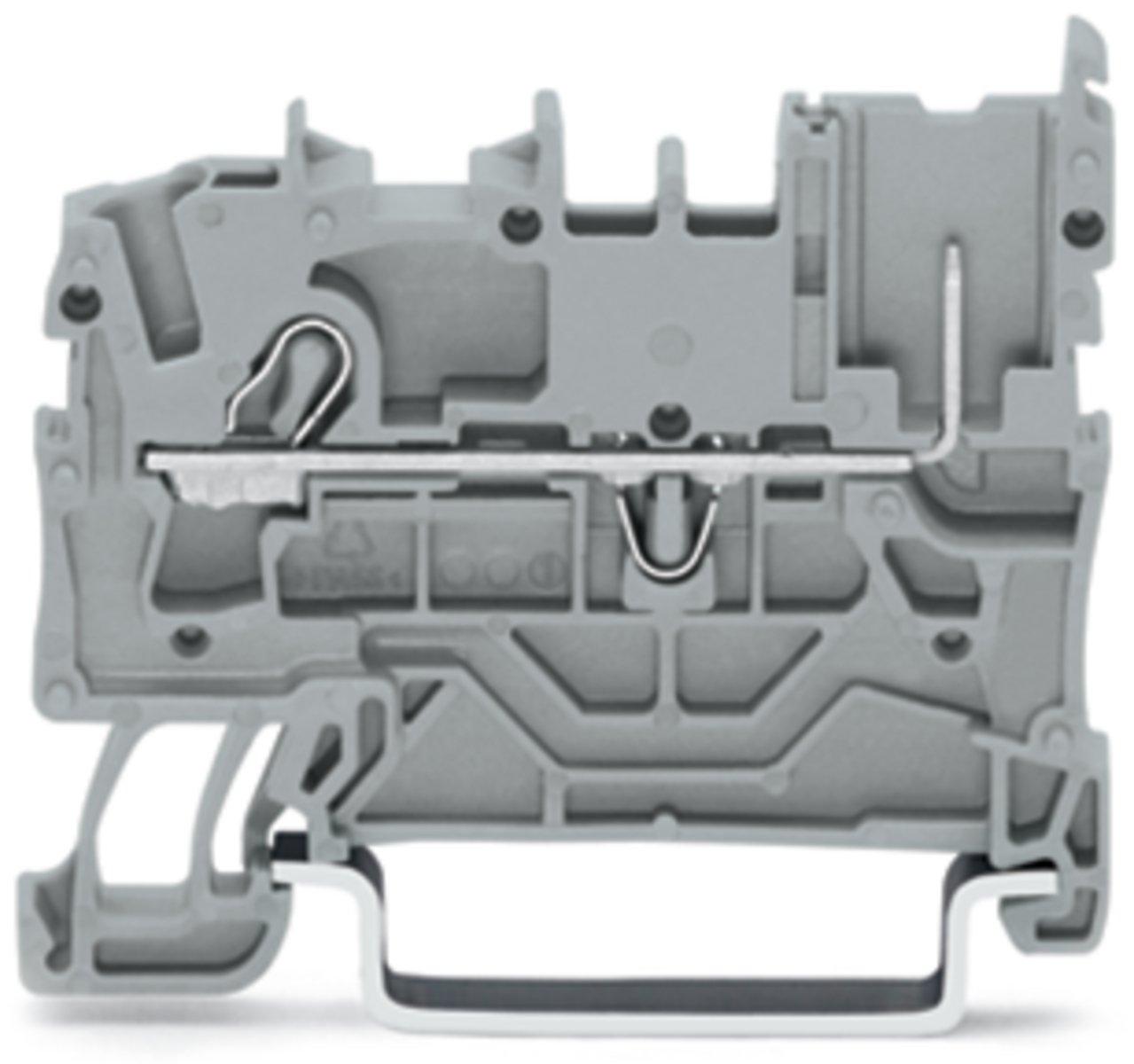

WAGO 2022-1201 1-conductor/1-pin carrier terminal block
Part Number # 2022-1201
SKU # 2208304
$1.71 / Each
Typical price:$1.85 / Each
Wago 2022-1201 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2022-1201 |
| SKU #: | 2208304 |
| Amperage Rating: | 24 A |
| Dimensions: | 1.909 in H x 0.205 in W x 1.433 in D |
| Series: | 2022 |
| Temperature Rating (Degrees F): | -60 to 105 deg C |
| Type: | 1-Conductor |
| Wire Size: | 22 to 12 AWG |
| Actuation type: | Operating tool || Push-in |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | CN |
| Depth: | 48.5 mm / 1.909 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide 6.6 |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 2.5 mm² |
| Rated current: | 24 A |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Total number of connection points: | 1 |
| Weight: | 5.038 g |
| Width: | 5.2 mm / 0.205 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04050821145059 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1.71 / Each
Typical price:$1.85 / Each
Quantity:
WAGO 2022-1201 1-conductor/1-pin carrier terminal block
Brand: Wago
Part Number: 2022-1201
Additional Description: WAGO-2022-1201 1-CONDUCTOR/1-PIN CARRIER TERMINAL BLOCK; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM ; PUSH-IN CAGE CLAMP ; 2,50 MM ; GRAY GRY 20A 51233825
Catalog Description: 1-conductor/1-pin carrier terminal block; 2.5 mm²; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; gray
2022-1201 Standards
RoHS Compliant|UL94SKU #2208304Part Number #2022-1201UNSPSC39121410UPC04050821145059
