Brand: Wago

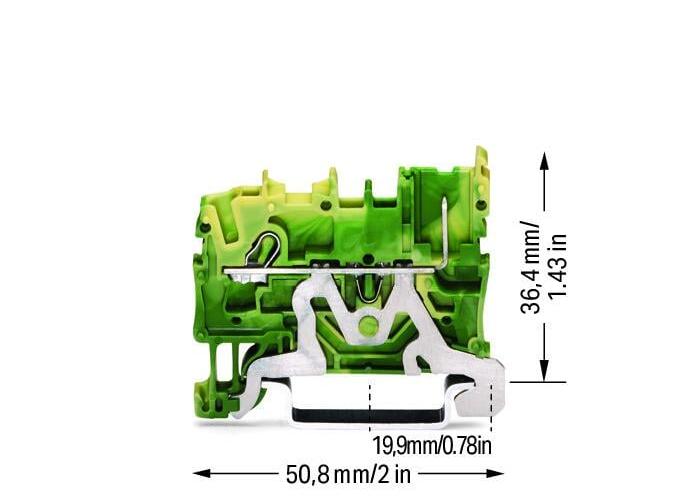

WAGO 2022-1207 1-conductor/1-pin ground carrier terminal block
Image Disclaimers Message
Brand: Wago
WAGO 2022-1207 1-conductor/1-pin ground carrier terminal block
Brand: Wago
WAGO 2022-1207 1-conductor/1-pin ground carrier terminal block
Part #:2022-1207
SKU #: 2323697
$2.65/EA
Key Features
Part #:2022-1207
SKU #: 2323697
Brand: Wago
Actuation type: Operating tool || Push-in
Color: Green-yellow
Connection technology: Push-in CAGE CLAMP®
Country of origin: CN
Depth: 50.8 mm / 0.2 inch
$2.65/EA
Specifications
Brand: Wago
Actuation type: Operating tool || Push-in
Color: Green-yellow
Connection technology: Push-in CAGE CLAMP®
Country of origin: CN
Depth: 50.8 mm / 0.2 inch
Insulation material: Polyamide (PA66)
Mounting type: DIN-35 rail
Nominal cross-section: 2.5 mm²
Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
Total number of connection points: 1
Weight: 7.837 g
Width: 5.2 mm / 0.205 inch
Wiring type: Front-entry wiring
UNSPSC: 39121410
UPC: 04050821145097
WAGO 2022-1207 1-conductor/1-pin ground carrier terminal block
Additional Description: WAGO-2022-1207 1-CONDUCTOR/1-PIN GROUND CARRIER TERMINAL BLOCK; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM ; PUSH-IN CAGE CLAMP ; 2,50 MM ; GREEN-YELLOW 51233829
Catalog Description: 1-conductor/1-pin ground carrier terminal block; 2.5 mm²; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; green-yellow
