Part Number # 2022-2201
SKU # 2208310
Brand: Wago
2022-2201

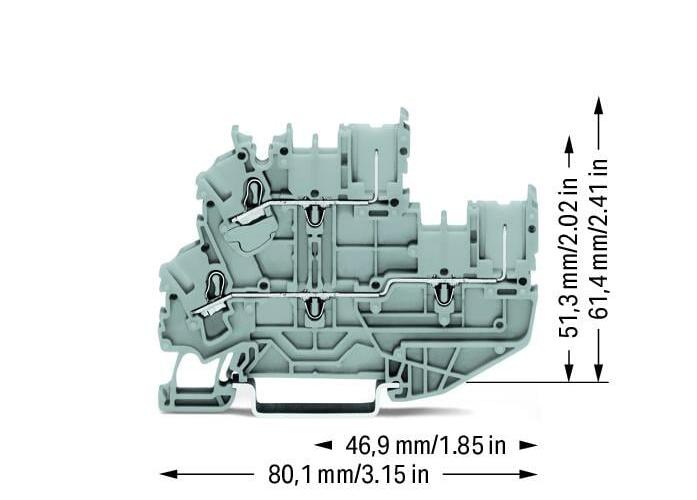

WAGO 2022-2201 1-conductor/1-pin double deck receptacle terminal block
Part Number # 2022-2201
SKU # 2208310
$3.06 / Each
Typical price:$3.32 / Each
Wago 2022-2201 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2022-2201 |
| SKU #: | 2208310 |
| Amperage Rating: | 24 A |
| Dimensions: | 3.154 in H x 0.205 in W x 2.02 in D |
| Number of Poles: | 2 |
| Type: | Operating Tool |
| Wire Size: | 22 to 12 AWG |
| Actuation type: | Operating tool || Push-in |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | CN |
| Depth: | 80.1 mm / 3.154 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 2.5 mm² |
| Potential marking: | L/L |
| Rated current: | 24 A |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Total number of connection points: | 2 |
| Weight: | 11.330 g |
| Width: | 5.2 mm / 0.205 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04050821892373 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3.06 / Each
Typical price:$3.32 / Each
Quantity:
WAGO 2022-2201 1-conductor/1-pin double deck receptacle terminal block
Brand: Wago
Part Number: 2022-2201
Additional Description: WAGO-2022-2201 1-CONDUCTOR/1-PIN DOUBLE DECK RECEPTACLE TERMINAL BLOCK; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM ; PUSH-IN CAGE CLAMP ; 2,50 MM ; GRAY BLK-GRY 51293950
Catalog Description: 1-conductor/1-pin double deck receptacle terminal block; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; gray
2022-2201 Standards
CSA 22.2 No 158|IEC/EN 60947-7-1|RoHS CompliantSKU #2208310Part Number #2022-2201UNSPSC39121410UPC04050821892373
Image provided may only be a representation of final product and may include optional equipment
