Part Number # 2022-2231
SKU # 2431432
Brand: Wago
2022-2231
WAGO 2022-2231 Terminal Blocks
Part Number # 2022-2231
SKU # 2431432
$3.43 / Each
Typical price:$3.72 / Each
Wago 2022-2231 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2022-2231 |
| SKU #: | 2431432 |
| Amperage Rating: | 24 A |

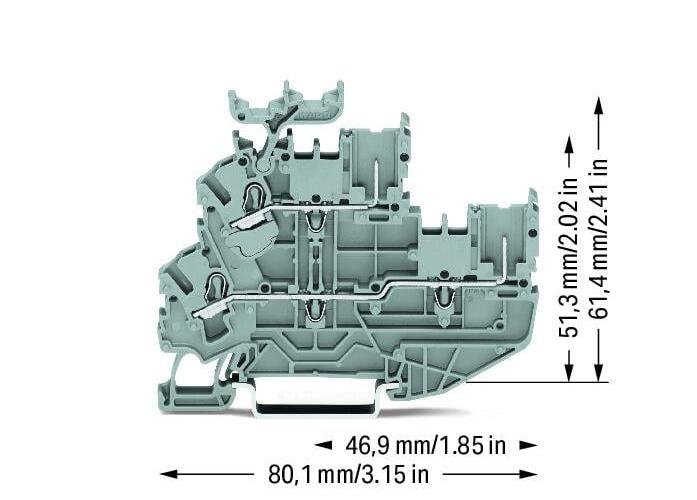

| Dimensions: | 3.154 in H x 0.205 in W x 2.417 in D |
| Number of Poles: | 2 |
| Type: | Operating Tool |
| Wire Size: | 22 to 12 AWG |
| Connection type: | Clamp |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454913618 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3.43 / Each
Typical price:$3.72 / Each
Quantity:
WAGO 2022-2231 Terminal Blocks
Brand: Wago
Part Number: 2022-2231
Additional Description: WAGO-2022-2231 1-CONDUCTOR/1-PIN, DOUBLE-DECK TB THROUGH/THROUGH TERMINAL BLOCK, GRAY 20222231
Catalog Description: 1-conductor/1-pin double deck receptacle terminal block; Through/through terminal block; 2.5 mm²; L/L; with marker carrier; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; gray
2022-2231 Standards
CSA 22.2 No 158|IEC/EN 60947-7-1|RoHS CompliantSKU #2431432Part Number #2022-2231UNSPSC39121410UPC04045454913618
Image provided may only be a representation of final product and may include optional equipment
