Part Number # 2091-1103/002-000
SKU # 2322549
Image Disclaimers Message
Brand: Wago
2091-1103/002-000

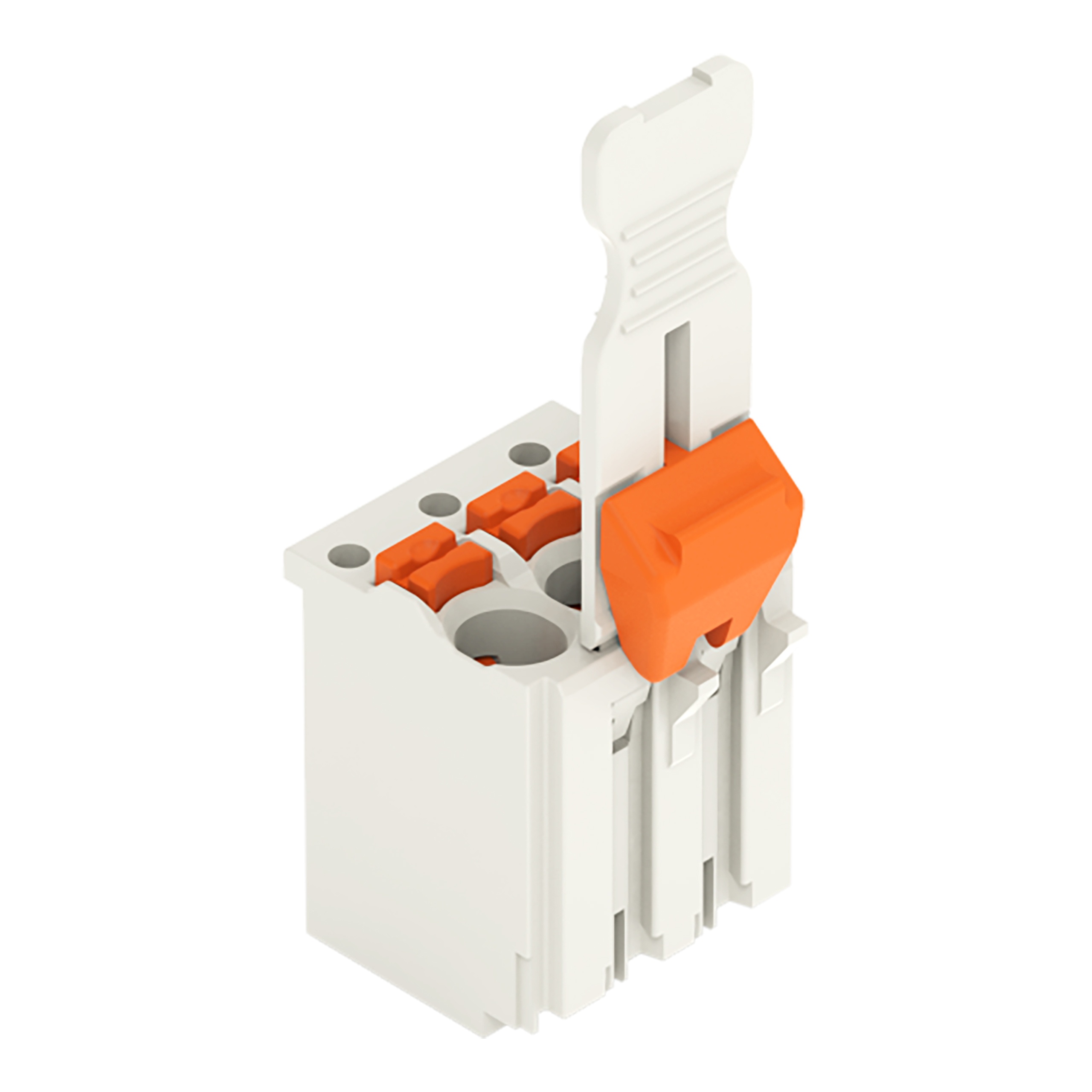

WAGO 2091-1103/002-000 1-conductor female plug
Part Number # 2091-1103/002-000
SKU # 2322549
$2.53 / Each
Typical price:$2.74 / Each
Wago 2091-1103/002-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2091-1103/002-000 |
| SKU #: | 2322549 |
| Amperage Rating: | 10 A |
| Dimensions: | 31 mm H x 10.5 mm W x 12.4 mm D |
| Number of Poles: | 3 |
| Temperature Rating (Degrees F): | -60 to 100 deg C |
| Wire Size: | 14 to 24 AWG |
| Actuation type: | Push-button |
| Approvals per: | CSA, UL 1059 |
| Connection technology: | Push-in CAGE CLAMP® |
| Connector (connection type): | For conductor |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | DE |
| Depth: | 12.4 mm / 0.488 inch |
| Height: | 31 mm / 1.22 inch |
| Insulation material: | Polyphthalamide (PPA GF) |
| Material: | Polyphthalamide |
| Mounting type: | Free Hanging, Free Hanging In-Line |
| Number of connection types: | 1 |
| Rated current: | 0.416666666666667 |
| Solid conductor: | 0.2 … 1.5 mm² / 24 … 14 AWG |
| Total number of connection points: | 3 |
| Weight: | 1.490 g |
| Width: | 10.5 mm / 0.413 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121459 |
| UPC: | 04050821411635 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2.53 / Each
Typical price:$2.74 / Each
Quantity:
- WAGO, 2091-1103/002-000, Pluggable Connector, 320 V AC, 10 A, 3 Pole, 14 to 24 AWG Wire, 8 to 9 mm Wire Strip Length, Free Hanging Mounting, -60 to 100 deg C, Polyphthalamide, Gray, 31 mm H x 10.5 mm W x 12.4 mm D DimensionsSKU #2322549Part Number #2091-1103/002-000UNSPSC39121459UPC04050821411635
