Brand: Wago

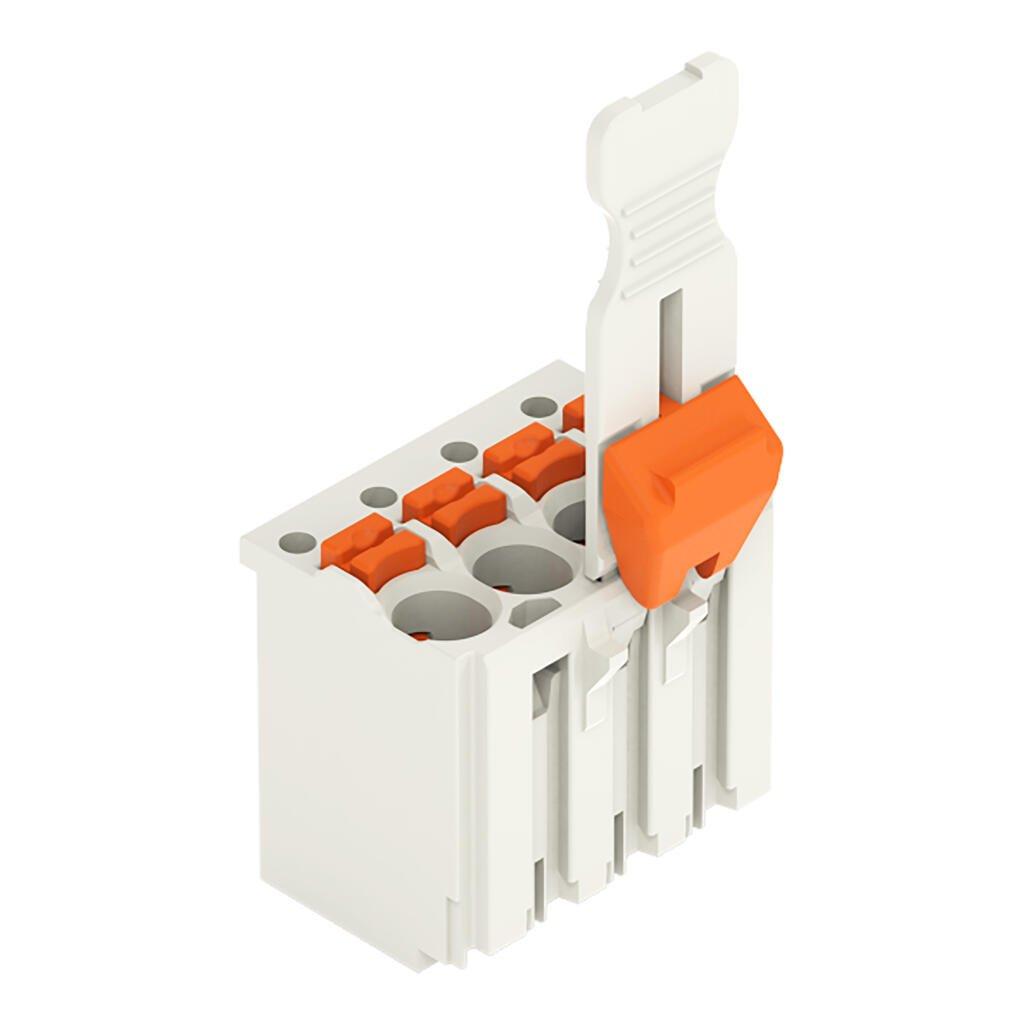

WAGO 2091-1103/002-1000 1-conductor female plug
Image Disclaimers Message
Brand: Wago
WAGO 2091-1103/002-1000 1-conductor female plug
Brand: Wago
WAGO 2091-1103/002-1000 1-conductor female plug
Part #:2091-1103/002-1000
SKU #: 2283523
$2.64/EA
Key Features
Part #:2091-1103/002-1000
SKU #: 2283523
Brand: Wago
Actuation type: Push-button
Approvals per: CSA, UL 1059
Color: Light gray
Connection technology: Push-in CAGE CLAMP®
Connector (connection type): For conductor
$2.64/EA
Specifications
Brand: Wago
Actuation type: Push-button
Approvals per: CSA, UL 1059
Color: Light gray
Connection technology: Push-in CAGE CLAMP®
Connector (connection type): For conductor
Contact material: Electrolytic copper (ECu)
Contact type (pluggable connector): Female connector/socket
Country of origin: DE
Depth: 12.4 mm / 0.488 inch
Height: 31 mm / 1.22 inch
Insulation material: Polyphthalamide (PPA GF)
Number of connection types: 1
Rated current: 0.416666666666667
Solid conductor: 0.2 … 1.5 mm² / 24 … 14 AWG
Total number of connection points: 3
Weight: 1.568 g
Width: 10.5 mm / 0.413 inch
UNSPSC: 39121459
UPC: 04050821487173
WAGO 2091-1103/002-1000 1-conductor female plug
Additional Description: WAGO-2091-1103/0002-1000 1-CONDUCTOR FEMALE PLUG; GRIPPING PLATE SLIDING CONNECTOR RELEASE; DIRECT MARKING; 1.5 MM ; PIN SPACING 3.5 MM; 3-POLE; 1,50 MM ; LIGHT GRAY 51261227
Catalog Description: 1-conductor female connector; push-button; Push-in CAGE CLAMP®; 1.5 mm²; Pin spacing 3.5 mm; 3-pole; Gripping plate sliding connector release; direct marking; 1,50 mm²; light gray
