Part Number # 2091-1106/002-000
SKU # 2342510
Image Disclaimers Message
2091-1106/002-000

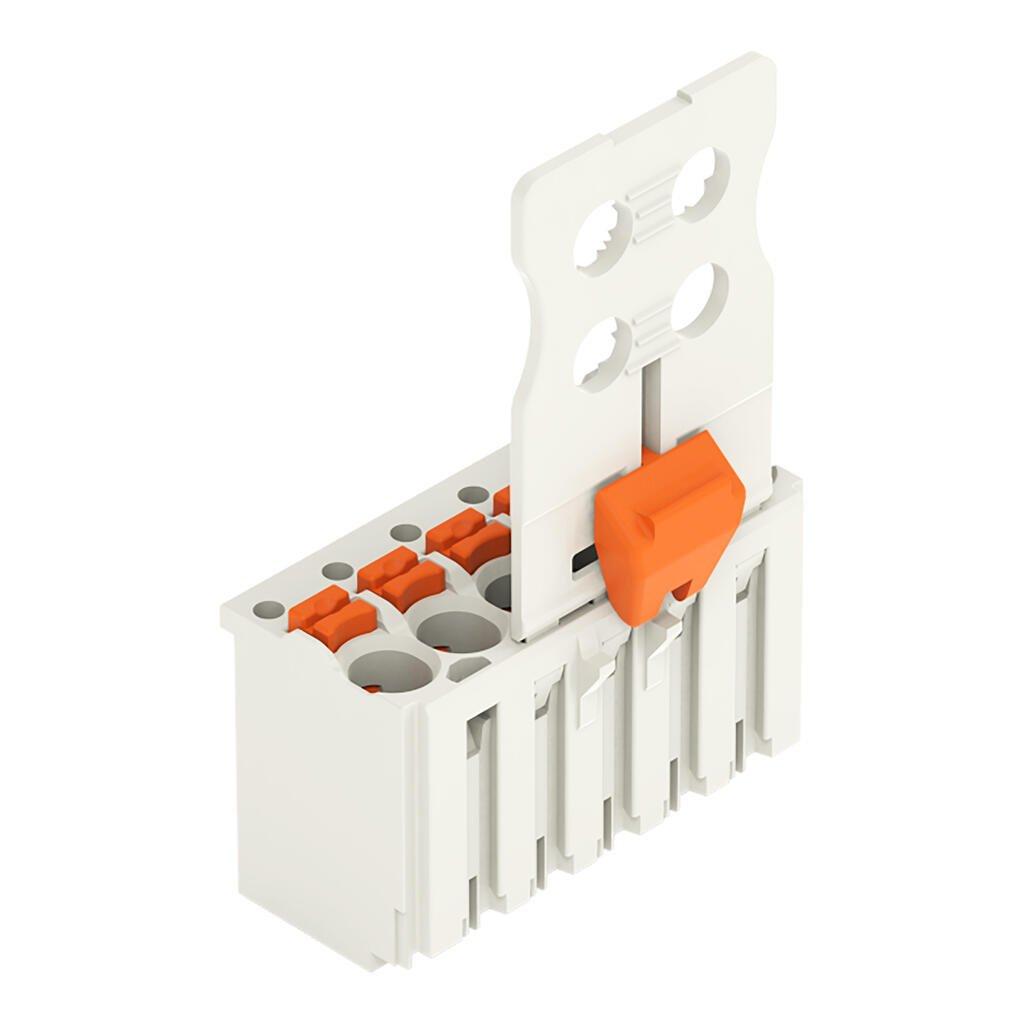

WAGO 2091-1106/002-000 1-conductor female plug
Part Number # 2091-1106/002-000
SKU # 2342510
$4.30 / Each
Typical price:$4.66 / Each
Wago 2091-1106/002-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2091-1106/002-000 |
| SKU #: | 2342510 |
| Amperage Rating: | 10 A |
| Dimensions: | 1.339 in H x 0.827 in W x 0.488 in D |
| Number of Poles: | 6 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Push Button |
| Wire Size: | 24 to 14 AWG |
| Actuation type: | Push-button |
| Approvals per: | CSA, UL 1059 |
| Color: | Light gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Connector (connection type): | For conductor |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | DE |
| Depth: | 12.4 mm / 0.488 inch |
| Height: | 34 mm / 1.339 inch |
| Insulation material: | Polyphthalamide (PPA GF) |
| Material: | Polyphthalamide |
| Number of connection types: | 1 |
| Rated current: | 0.416666666666667 |
| Solid conductor: | 0.2 … 1.5 mm² / 24 … 14 AWG |
| Total number of connection points: | 6 |
| Weight: | 2.880 g |
| Width: | 21 mm / 0.827 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121459 |
| UPC: | 04050821411666 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4.30 / Each
Typical price:$4.66 / Each
Quantity:
WAGO 2091-1106/002-000 1-conductor female plug
Brand: Wago
Part Number: 2091-1106/002-000
Additional Description: WAGO-2091-1106/002-000 1-CONDUCTOR FEMALE PLUG; GRIPPING PLATE SLIDING CONNECTOR RELEASE; 1.5 MM; PIN SPACING 3.5 MM; 6-POLE; 1,50 MM; LIGHT GRAY 51255036 PLATE SLIDING CONNECTOR RELEASE; 1.5 MM ; PIN SPACING 3.5 MM; 6-POLE; 1,50 MM ; LIGHT GRAY 51255036
Catalog Description: 1-conductor female connector; push-button; Push-in CAGE CLAMP®; 1.5 mm²; Pin spacing 3.5 mm; 6-pole; Gripping plate sliding connector release; 1,50 mm²; light gray
2091-1106/002-000 Item Features
- Universal connection of all conductor types
- Simple, push-in termination of solid and ferruled conductors
- Easy-to-use design does not require special tools
- Ability to wire while mated or unmated
- Testing parallel to conductor entry - tip contact
- Also available with gripping plates
- Integrated locking latches prevent accidental disconnection
2091-1106/002-000 Standards
UL 1059|IEC/EN 60664-1|RoHS CompliantSKU #2342510Part Number #2091-1106/002-000UNSPSC39121459UPC04050821411666
