2091-1112

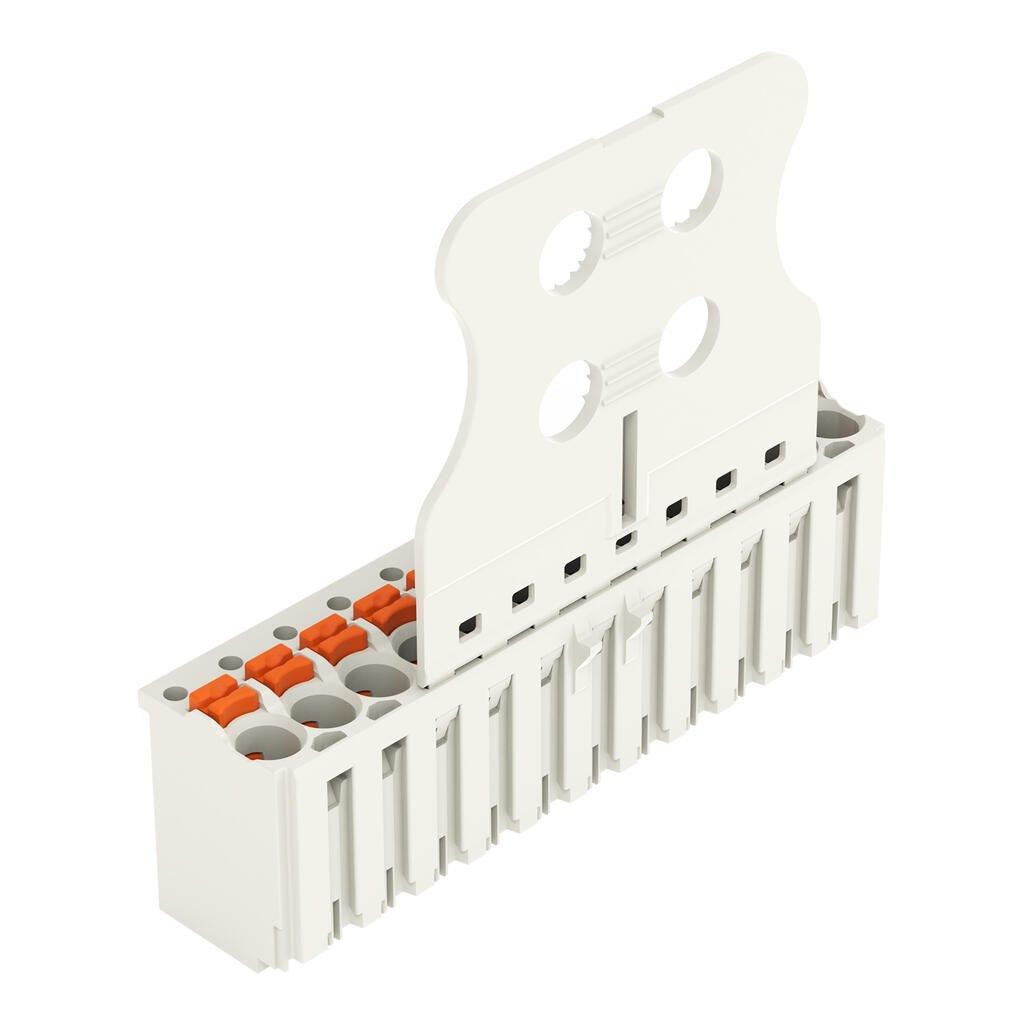

WAGO 2091-1112 1-conductor female plug
Part Number # 2091-1112
SKU # 2349228
$8.10 / Each
Typical price:$8.78 / Each
Wago 2091-1112 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2091-1112 |
| SKU #: | 2349228 |
| Amperage Rating: | 10 A |
| Dimensions: | 1.496 in H x 1.654 in W x 0.449 in D |
| Number of Poles: | 12 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Push Button |
| Wire Size: | 24 to 14 AWG |
| Actuation type: | Push-button |
| Approvals per: | CSA, UL 1059 |
| Color: | Light gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Connector (connection type): | For conductor |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | DE |
| Depth: | 11.4 mm / 0.449 inch |
| Height: | 38 mm / 1.496 inch |
| Insulation material: | Polyphthalamide (PPA GF) |
| Material: | Polyphthalamide |
| Number of connection types: | 1 |
| Rated current: | 0.416666666666667 |
| Solid conductor: | 0.2 … 1.5 mm² / 24 … 14 AWG |
| Total number of connection points: | 12 |
| Weight: | 6.270 g |
| Width: | 42 mm / 1.654 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121459 |
| UPC: | 04050821160748 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$8.10 / Each
Typical price:$8.78 / Each
Quantity:
WAGO 2091-1112 1-conductor female plug
Brand: Wago
Part Number: 2091-1112
Additional Description: WAGO-2091-1112 1-CONDUCTOR FEMALE PLUG; GRIPPING PLATE; 1.5 MM ; PIN SPACING 3.5 MM; 12-POLE; 1,50 MM ; LIGHT GRAY 20911112
Catalog Description: 1-conductor female connector; push-button; Push-in CAGE CLAMP®; 1.5 mm²; Pin spacing 3.5 mm; 12-pole; Gripping plate; 1,50 mm²; light gray
2091-1112 Item Features
- Universal connection for all conductor types
- Simple, push-in termination of solid and ferruled conductors
- Easy-to-use design does not require specialty tools
- Ability to wire while mated or unmated
- Test port parallel to conductor entry - touch contact
- Integrated locking latches prevent accidental disconnection
2091-1112 Standards
UL 1059|IEC/EN 60664-1|RoHS CompliantSKU #2349228Part Number #2091-1112UNSPSC39121459UPC04050821160748
