Brand: Wago

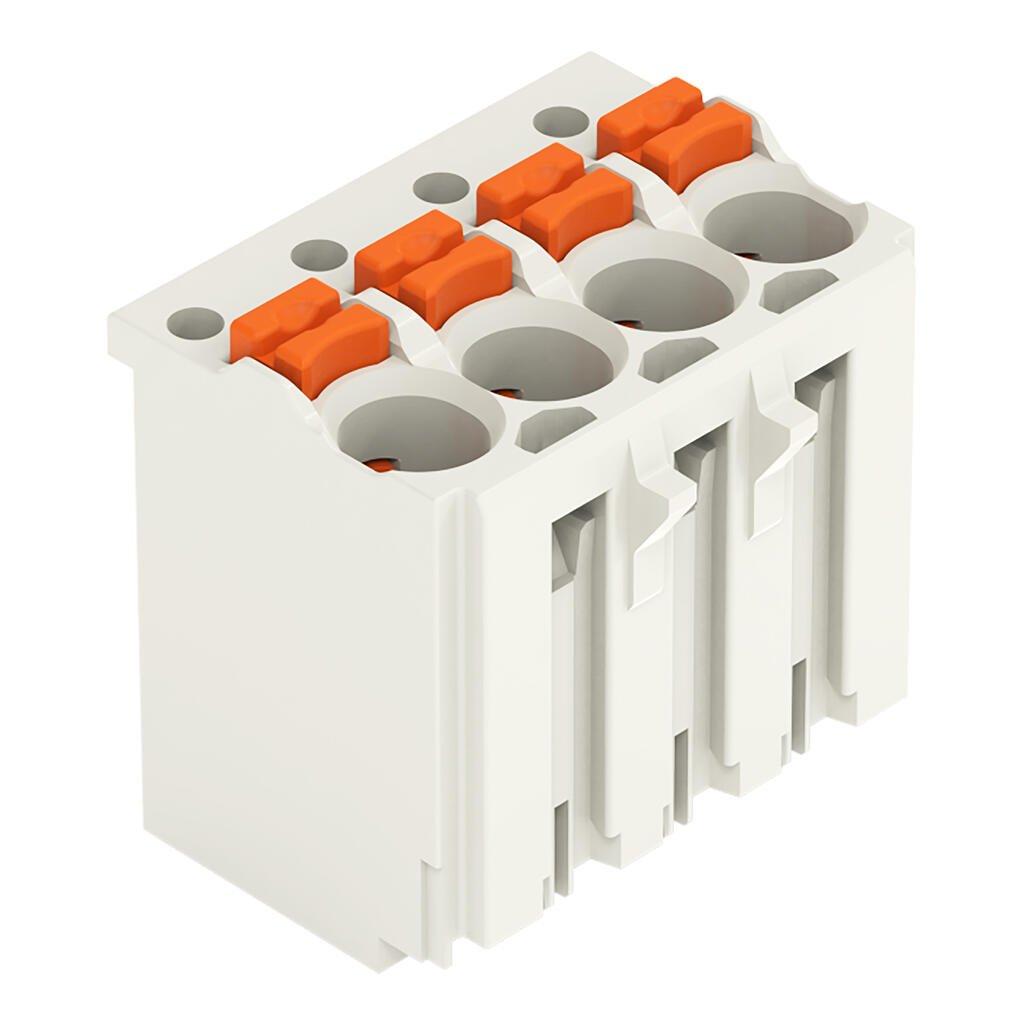

WAGO 2091-1124 1-conductor female plug
Image Disclaimers Message
Brand: Wago
WAGO 2091-1124 1-conductor female plug
Brand: Wago
WAGO 2091-1124 1-conductor female plug
Part #:2091-1124
SKU #: 2322095
$2.21/EA
Key Features
Part #:2091-1124
SKU #: 2322095
Brand: Wago
Actuation type: Push-button
Approvals per: CSA, UL 1059
Color: Light gray
Connection technology: Push-in CAGE CLAMP®
Connector (connection type): For conductor
$2.21/EA
Specifications
Brand: Wago
Actuation type: Push-button
Approvals per: CSA, UL 1059
Color: Light gray
Connection technology: Push-in CAGE CLAMP®
Connector (connection type): For conductor
Contact material: Electrolytic copper (ECu)
Contact type (pluggable connector): Female connector/socket
Country of origin: DE
Depth: 11.4 mm / 0.449 inch
Height: 14 mm / 0.551 inch
Insulation material: Polyphthalamide (PPA GF)
Number of connection types: 1
Rated current: 0.416666666666667
Solid conductor: 0.2 … 1.5 mm² / 24 … 14 AWG
Total number of connection points: 4
Weight: 1.803 g
Width: 14 mm / 0.551 inch
UNSPSC: 39121459
UPC: 04050821160779
WAGO 2091-1124 1-conductor female plug
Additional Description: WAGO-2091-1124 1-CONDUCTOR FEMALE PLUG; 1.5 MM; PIN SPACING 3.5 MM; 4-POLE; 1,50 MM; LIGHT GRAY 20911124 MM ; LIGHT GRAY 20911124
Catalog Description: 1-conductor female connector; push-button; Push-in CAGE CLAMP®; 1.5 mm²; Pin spacing 3.5 mm; 4-pole; 1,50 mm²; light gray
