2091-1424

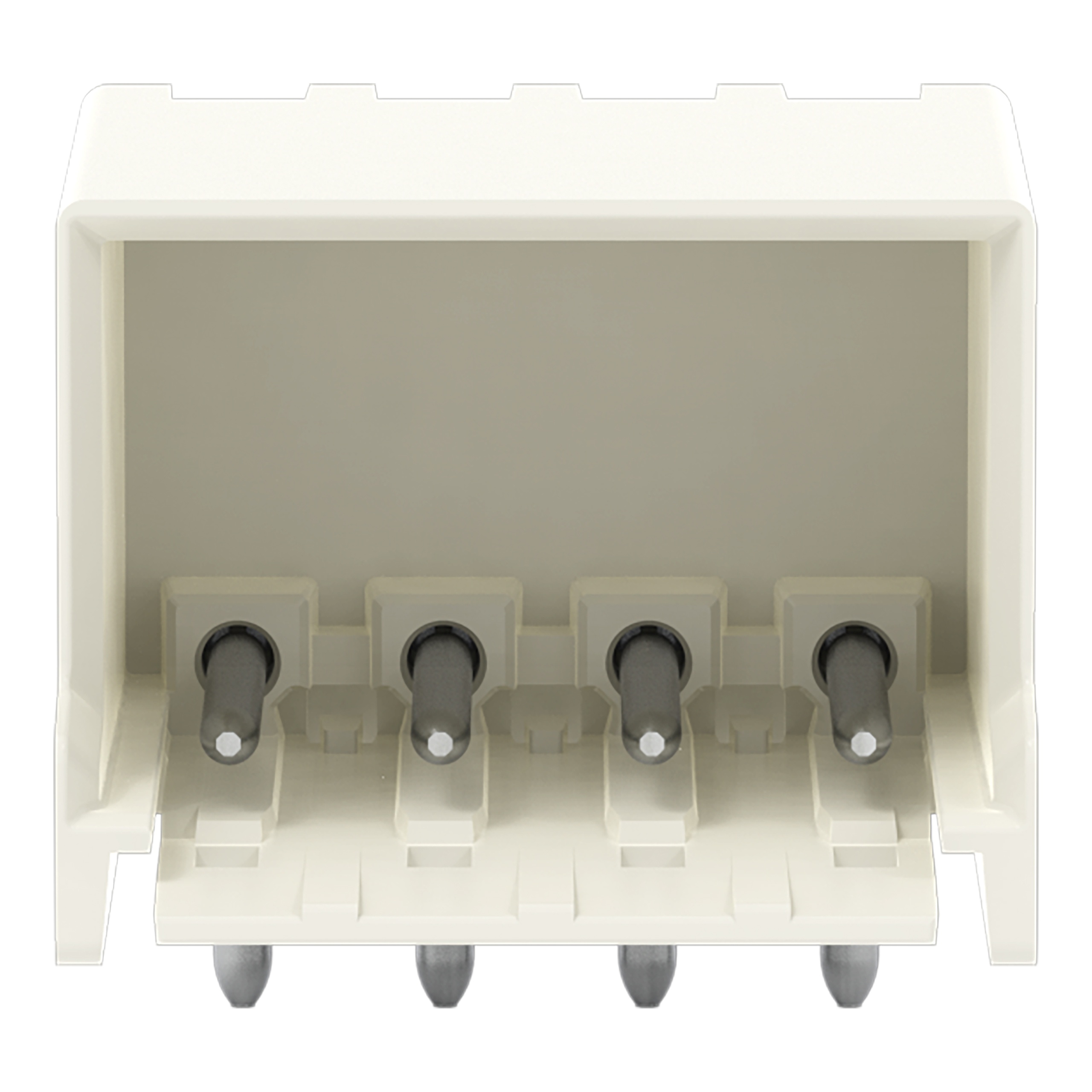

WAGO 2091-1424 THT male header
Part Number # 2091-1424
SKU # 2322551
$0.95 / Each
Typical price:$1.03 / Each
Wago 2091-1424 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2091-1424 |
| SKU #: | 2322551 |
| Amperage Rating: | 10 A |
| Dimensions: | 0.63 in H x 0.63 in W x 0.689 in D |
| Number of Positions: | 4 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Angled |
| Approvals per: | CSA, UL 1059 |
| Color: | Light gray |
| Connector (connection type): | For PCB |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | DE |
| Depth: | 17.5 mm / 0.689 inch |
| Height: | 16 mm / 0.63 inch |
| Insulation material: | Polyphthalamide (PPA GF) |
| Material: | Polyphthalamide |
| Number of connection types: | 1 |
| Rated current: | 0.416666666666667 |
| Weight: | 1.700 g |
| Width: | 16 mm / 0.63 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121459 |
| UPC: | 04050821161097 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$0.95 / Each
Typical price:$1.03 / Each
Quantity:
WAGO 2091-1424 THT male header
Brand: Wago
Part Number: 2091-1424
Additional Description: WAGO-2091-1424 THT MALE HEADER; 1.0 MM SOLDER PIN; ANGLED; PIN SPACING 3.5 MM; 4-POLE; LIGHT GRAY 20911424
Catalog Description: THT male header; 1.0 mm Ø solder pin; angled; Pin spacing 3.5 mm; 4-pole; light gray
2091-1424 Item Features
- Assembly of female connectors without loss of poles, allowing different functions to be divided within one male header (4 poles)
- The female connector is fully shrouded by the male headers housing, providing vibration resistance up to 8 g
2091-1424 Standards
UL 1059|IEC/EN 60664-1|RoHS CompliantSKU #2322551Part Number #2091-1424UNSPSC39121459UPC04050821161097
