Part Number # 2091-1528/002-000
SKU # 2365244
Image Disclaimers Message
2091-1528/002-000

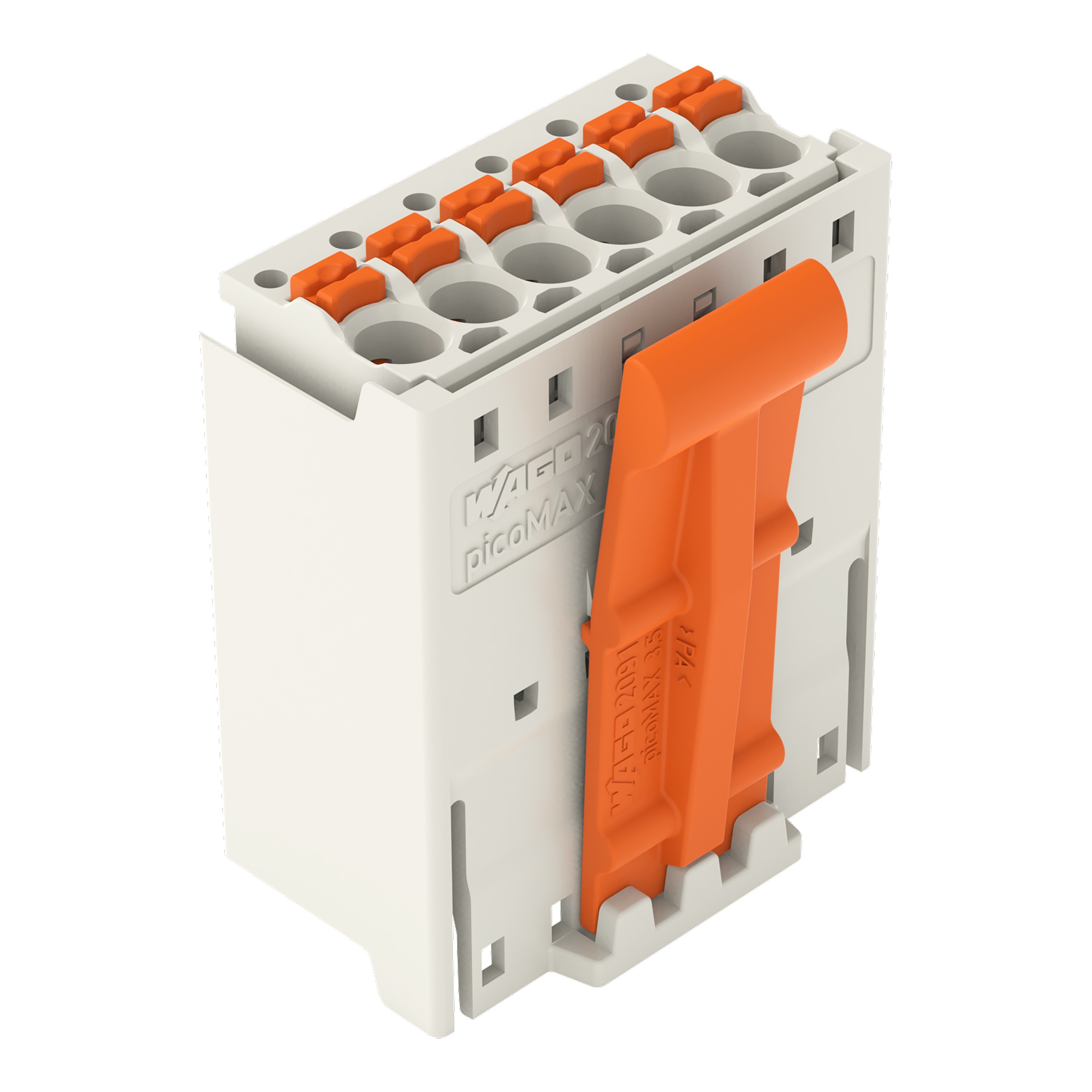

WAGO 2091-1528/002-000 1-conductor male connector
Part Number # 2091-1528/002-000
SKU # 2365244
$7.15 / Each
Typical price:$7.75 / Each
Wago 2091-1528/002-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2091-1528/002-000 |
| SKU #: | 2365244 |
| Amperage Rating: | 10 A |
| Dimensions: | 0.62 in H x 1.18 in W x 1.10 in D |
| Number of Poles: | 8 |
| Series: | 2091 |
| Temperature Rating (Degrees F): | -60 to 100 deg C |
| Type: | 1-Conductor |
| Wire Size: | 24 to 14 AWG |
| Actuation type: | Push-button |
| Approvals per: | CSA, UL 1059 |
| Color: | Light gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Connector (connection type): | For conductor |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | DE |
| Depth: | 28 mm / 1.102 inch |
| Height: | 15.9 mm / 0.626 inch |
| Insulation material: | Polyphthalamide (PPA GF) |
| Material: | Polyphthalamide |
| Mounting type: | Cable |
| Number of connection types: | 1 |
| Rated current: | 0.416666666666667 |
| Solid conductor: | 0.2 … 1.5 mm² / 24 … 14 AWG |
| Total number of connection points: | 8 |
| Weight: | 7.500 g |
| Width: | 30 mm / 1.181 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121459 |
| UPC: | 04050821161387 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$7.15 / Each
Typical price:$7.75 / Each
Quantity:
WAGO 2091-1528/002-000 1-conductor male connector
Brand: Wago
Part Number: 2091-1528/002-000
Additional Description: WAGO-2091-1528/002-000 1-CONDUCTOR MALE CONNECTOR; INTEGRATED RELEASE LEVER; 1.5 MM ; PIN SPACING 3.5 MM; 8-POLE; 1,50 MM ; LIGHT GRAY 51235136
Catalog Description: 1-conductor male connector; Push-in CAGE CLAMP®; 1.5 mm²; Pin spacing 3.5 mm; 8-pole; Integrated release lever; 1,50 mm²; light gray
2091-1528/002-000 Standards
RoHS CompliantSKU #2365244Part Number #2091-1528/002-000UNSPSC39121459UPC04050821161387
