Brand: Wago

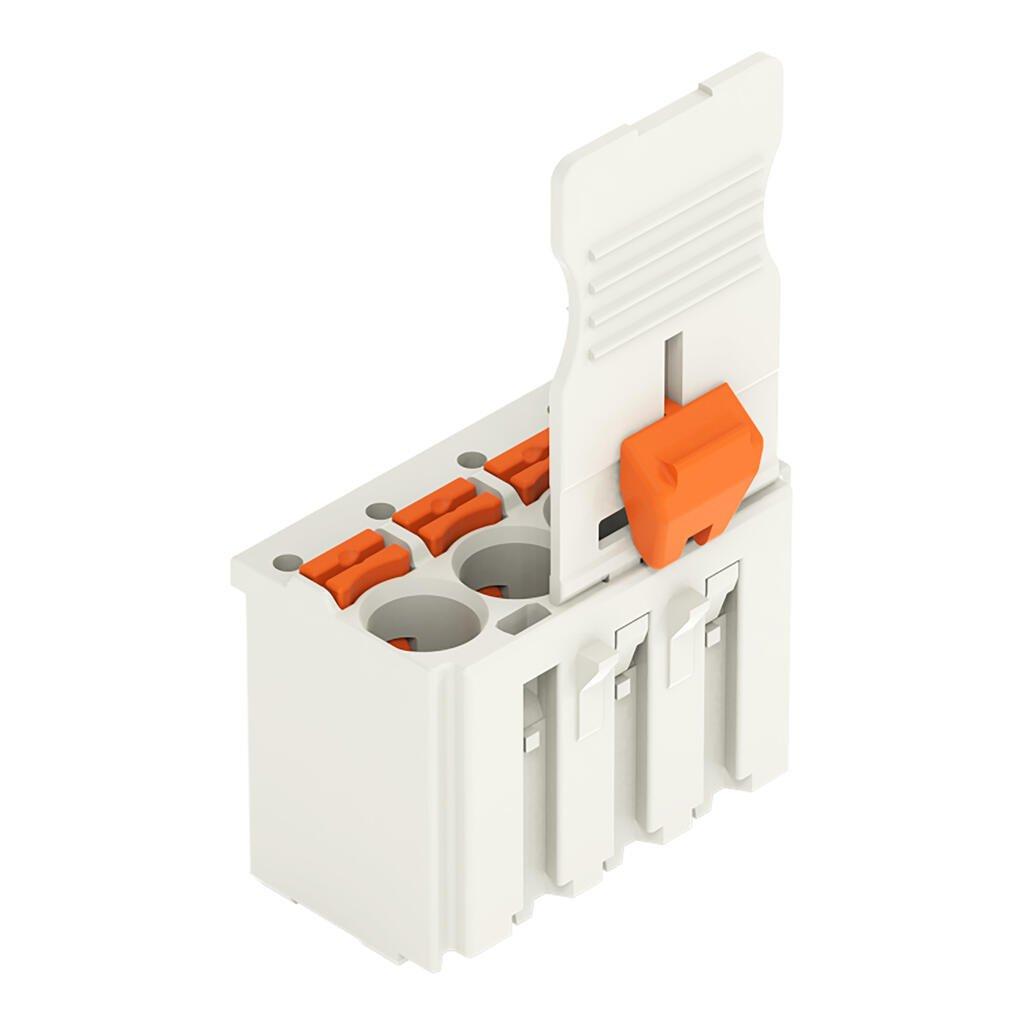

WAGO 2092-1104/002-000 1-conductor female plug
Image Disclaimers Message
Brand: Wago
WAGO 2092-1104/002-000 1-conductor female plug
Brand: Wago
WAGO 2092-1104/002-000 1-conductor female plug
Part #:2092-1104/002-000
SKU #: 2259713
$2.70/EA
Key Features
Part #:2092-1104/002-000
SKU #: 2259713
Brand: Wago
Actuation type: Push-button
Approvals per: CSA, UL 1059
Color: Light gray
Connection technology: Push-in CAGE CLAMP®
Connector (connection type): For conductor
$2.70/EA
Specifications
Brand: Wago
Actuation type: Push-button
Approvals per: CSA, UL 1059
Color: Light gray
Connection technology: Push-in CAGE CLAMP®
Connector (connection type): For conductor
Contact material: Electrolytic copper (ECu)
Contact type (pluggable connector): Female connector/socket
Country of origin: DE
Depth: 14.4 mm / 0.567 inch
Height: 35.4 mm / 1.394 inch
Insulation material: Polyphthalamide (PPA GF)
Number of connection types: 1
Rated current: 16 A
Solid conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
Total number of connection points: 4
Weight: 3.979 g
Width: 20 mm / 0.787 inch
UNSPSC: 39121459
UPC: 04050821411727
WAGO 2092-1104/002-000 1-conductor female plug
Additional Description: WAGO-2092-1104/002-000 1-CONDUCTOR FEMALE PLUG; GRIPPING PLATE SLIDING CONNECTOR RELEASE; 2.5 MM ; PIN SPACING 5 MM; 4-POLE; 2,50 MM ; LIGHT GRAY 51255042
Catalog Description: 1-conductor female connector; push-button; Push-in CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 4-pole; Gripping plate sliding connector release; 2,50 mm²; light gray
