2092-1123

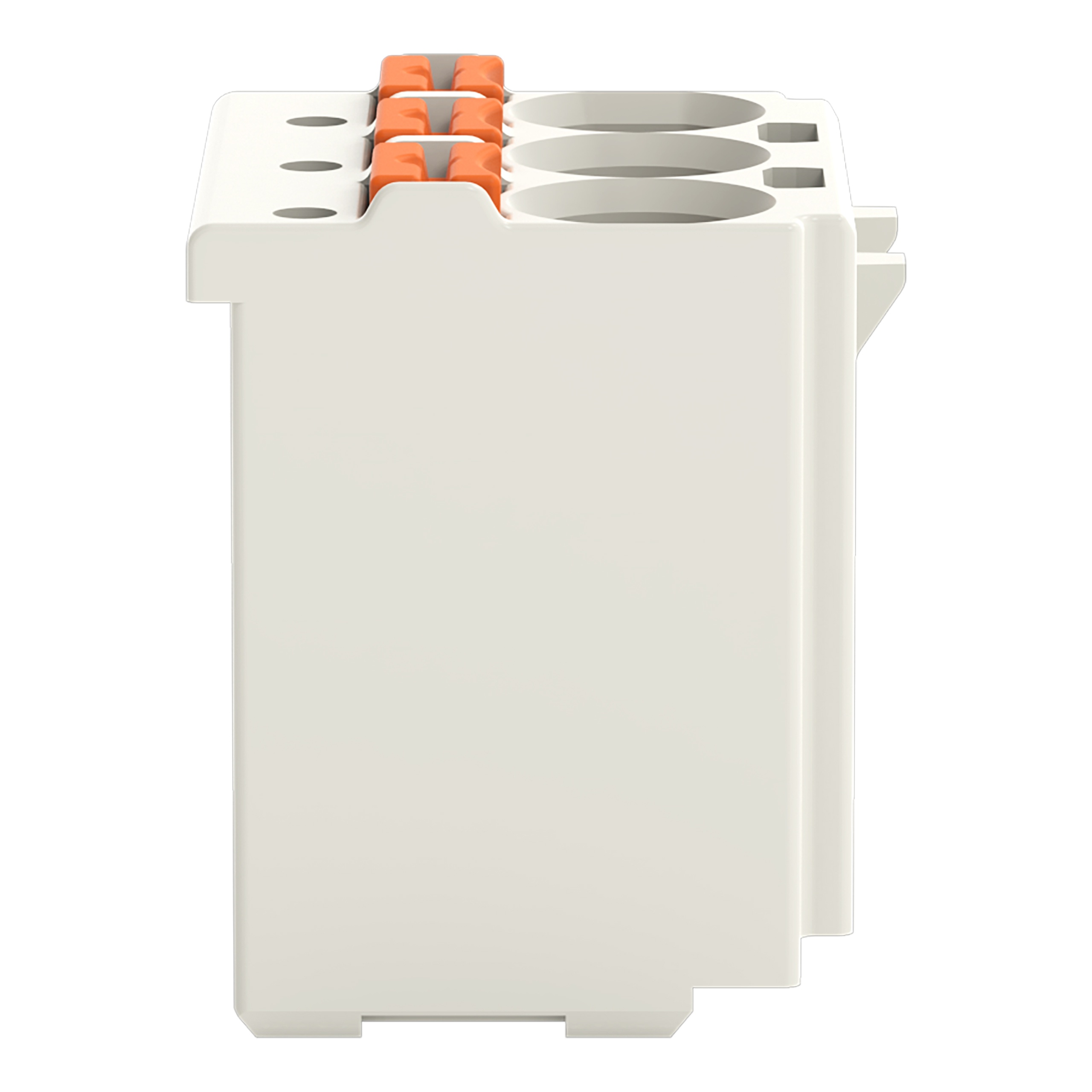

WAGO 2092-1123 1-conductor female plug
Part Number # 2092-1123
SKU # 2290714
$2.25 / Each
Typical price:$2.44 / Each
Wago 2092-1123 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2092-1123 |
| SKU #: | 2290714 |
| Amperage Rating: | 16 A |
| Dimensions: | 0.638 in H x 0.591 in W x 0.528 in D |
| Number of Poles: | 3 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Push Button |
| Wire Size: | 24 to 12 AWG |
| Actuation type: | Push-button |
| Approvals per: | CSA, UL 1059 |
| Color: | Light gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Connector (connection type): | For conductor |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | DE |
| Depth: | 13.4 mm / 0.528 inch |
| Height: | 16.2 mm / 0.638 inch |
| Insulation material: | Polyphthalamide (PPA GF) |
| Material: | Polyphthalamide |
| Number of connection types: | 1 |
| Rated current: | 16 A |
| Solid conductor: | 0.2 … 2.5 mm² / 24 … 12 AWG |
| Total number of connection points: | 3 |
| Weight: | 2.750 g |
| Width: | 15 mm / 0.591 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121459 |
| UPC: | 04050821163480 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2.25 / Each
Typical price:$2.44 / Each
Quantity:
WAGO 2092-1123 1-conductor female plug
Brand: Wago
Part Number: 2092-1123
Additional Description: WAGO-2092-1123 1-CONDUCTOR FEMALE PLUG; 2.5 MM ; PIN SPACING 5 MM; 3-POLE; 2,50 MM ; LIGHT GRAY 2092-1123 20921123
Catalog Description: 1-conductor female connector; push-button; Push-in CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 3-pole; 2,50 mm²; light gray
2092-1123 Item Features
- Universal connection of all conductor types
- Simple, push-in termination of solid and ferruled conductors
- Easy-to-use design does not require special tools
- Ability to wire while mated or unmated
- Testing parallel to conductor entry - tip contact
- Also available with gripping plates
- Integrated locking latches prevent accidental disconnection
2092-1123 Standards
UL 1059|IEC/EN 60664-1|RoHS CompliantSKU #2290714Part Number #2092-1123UNSPSC39121459UPC04050821163480
