Part Number # 2092-1403
SKU # 2286438
Image Disclaimers Message
Brand: Wago
2092-1403

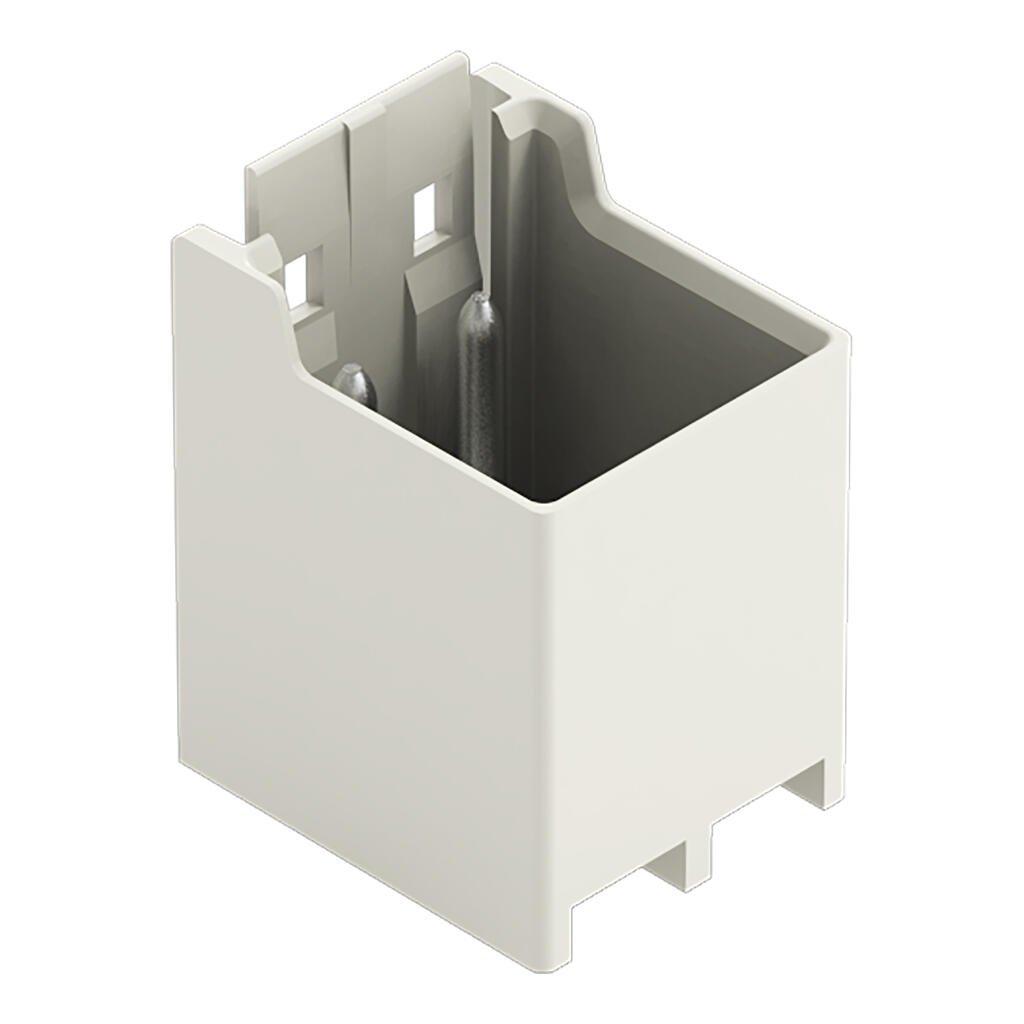

WAGO 2092-1403 THT male header
Part Number # 2092-1403
SKU # 2286438
$0.80 / Each
Typical price:$0.87 / Each
Wago 2092-1403 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2092-1403 |
| SKU #: | 2286438 |
| Amperage Rating: | 16 A |
| Dimensions: | 0.909 in H x 0.677 in W x 0.567 in D |
| Number of Positions: | 3 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Straight |
| Approvals per: | CSA, UL 1059 |
| Color: | Light gray |
| Connector (connection type): | For PCB |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | DE |
| Depth: | 14.4 mm / 0.567 inch |
| Height: | 23.1 mm / 0.909 inch |
| Insulation material: | Polyphthalamide (PPA GF) |
| Material: | Polyphthalamide |
| Number of connection types: | 1 |
| Rated current: | 16 A |
| Weight: | 2.120 g |
| Width: | 17.2 mm / 0.677 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121459 |
| UPC: | 04050821163848 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$0.80 / Each
Typical price:$0.87 / Each
Quantity:
WAGO 2092-1403 THT male header
Brand: Wago
Part Number: 2092-1403
Additional Description: WAGO-2092-1403 THT MALE HEADER; 1.4 MM SOLDER PIN; STRAIGHT; PIN SPACING 5 MM; 3-POLE; LIGHT GRAY 2092-1403 20921403
Catalog Description: THT male header; 1.4 mm Ø solder pin; straight; Pin spacing 5 mm; 3-pole; light gray
2092-1403 Item Features
- Assembly of female connectors without loss of poles, allowing different functions to be divided within one male header (4 poles)
- The female connector is fully shrouded by the male headers housing, providing vibration resistance up to 8 g
2092-1403 Standards
UL 1059|IEC/EN 60664-1|RoHS CompliantSKU #2286438Part Number #2092-1403UNSPSC39121459UPC04050821163848
