Brand: Wago

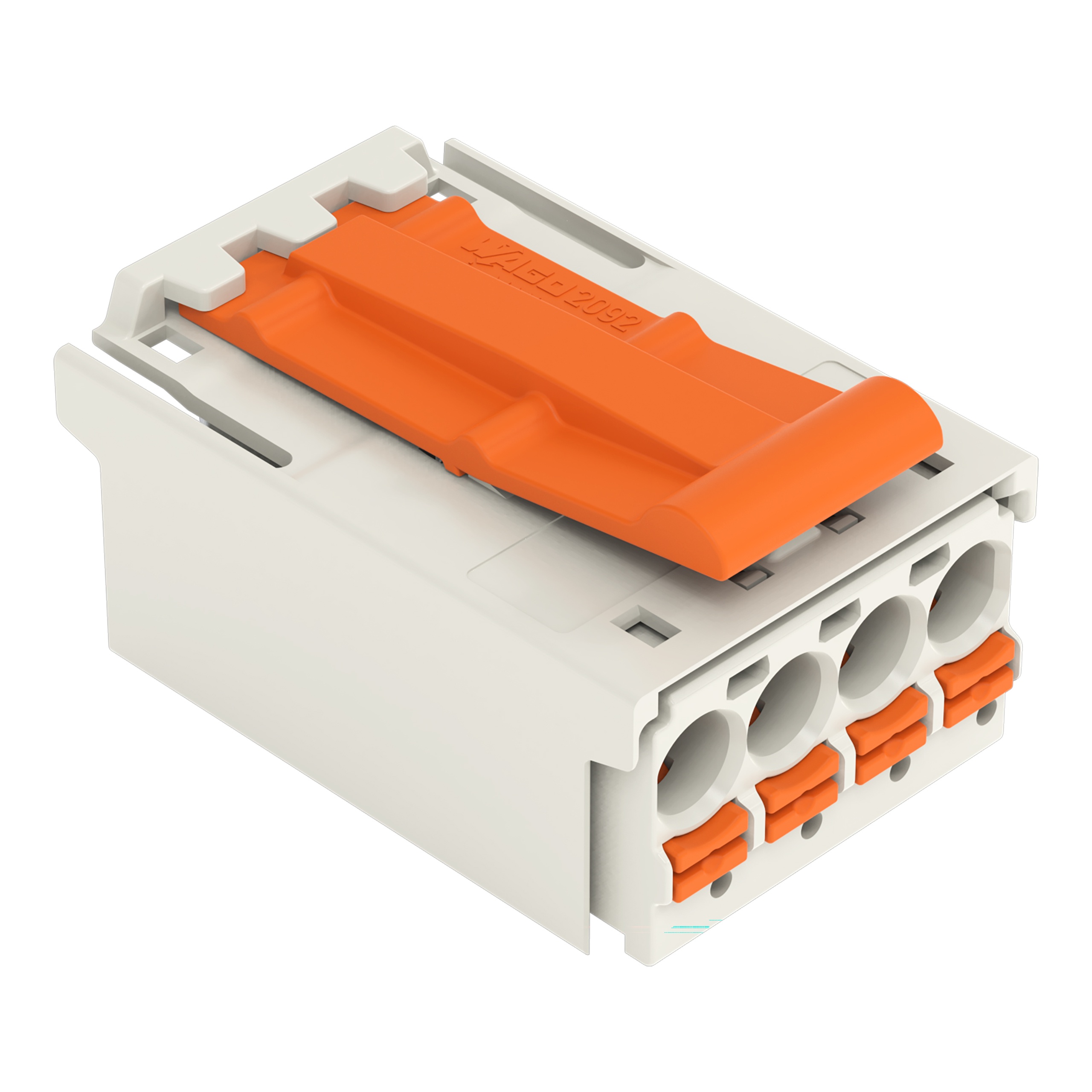

WAGO 2092-1522/002-000 1-conductor male connector
Image Disclaimers Message
Brand: Wago
WAGO 2092-1522/002-000 1-conductor male connector
Brand: Wago
WAGO 2092-1522/002-000 1-conductor male connector
Part #:2092-1522/002-000
SKU #: 2291639
$2.02/EA
Key Features
Part #:2092-1522/002-000
SKU #: 2291639
Brand: Wago
Amperage Rating: 16 A
Number of Poles: 2
Series: 2092
Spacing: 5 mm
Temperature Rating (Degrees F): -60 to 100 deg C
$2.02/EA
Specifications
Brand: Wago
Amperage Rating: 16 A
Number of Poles: 2
Series: 2092
Spacing: 5 mm
Temperature Rating (Degrees F): -60 to 100 deg C
Type: 1-Conductor
Voltage Rating: 320 V
Wire Size: 22 to 12 AWG
Actuation type: Push-button
Approvals per: CSA, UL 1059
Color: Light gray
Connection technology: Push-in CAGE CLAMP®
Connection type: Plug-In
Connector (connection type): For conductor
Contact material: Electrolytic copper (ECu)
Contact type (pluggable connector): Male connector/plug
Country of origin: DE
Depth: 32.6 mm / 1.283 inch
Height: 18.2 mm / 0.717 inch
Insulation material: Polyphthalamide (PPA GF)
Material: Polyamide
Number of connection types: 1
Rated current: 16 A
Solid conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
Total number of connection points: 2
Weight: 5.059 g
Width: 12.2 mm / 0.48 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 39121459
UPC: 04050821164203
WAGO 2092-1522/002-000 1-conductor male connector
Additional Description: WAGO-2092-1522/002-000 1-CONDUCTOR MALE CONNECTOR; GRIPPING PLATE; 2.5 MM; PIN SPACING 5 MM; 2-POLE; 2,50 MM; LIGHT GRAY 51235291 GRIPPING PLATE; 2.5 MM ; PIN SPACING 5 MM; 2-POLE; 2,50 MM ; LIGHT GRAY 51235291
Catalog Description: 1-conductor male connector; Push-in CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 2-pole; Integrated release lever; 2,50 mm²; light gray
Item FeaturesRoHS Compliant
