2102-1304

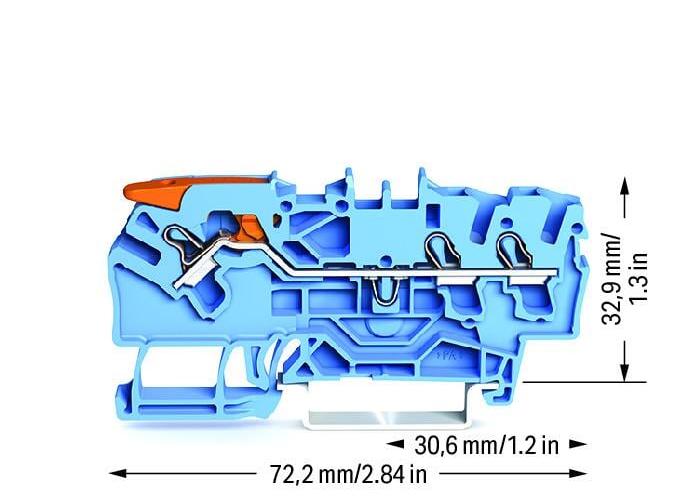

WAGO 2102-1304 TOPJOB S feedthrough terminal block with Lever and Open Tool Slots
Part Number # 2102-1304
SKU # 2365544
Wago 2102-1304 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2102-1304 |
| SKU #: | 2365544 |
| Amperage Rating: | 24 A |
| Dimensions: | 2.843 in H x 0.205 in W x 1.555 in D |
| Number of Poles: | 1 |
| Type: | Push-In |
| Wire Size: | 22 to 12 AWG |
| Actuation type: | Push-in || Lever |
| Color: | Blue |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 72.2 mm / 2.843 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 2.5 mm² |
| Rated current: | 24 A |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Total number of connection points: | 3 |
| Weight: | 8.056 g |
| Width: | 5.2 mm / 0.205 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143741804 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2102-1304 TOPJOB S feedthrough terminal block with Lever and Open Tool Slots
Brand: Wago
Part Number: 2102-1304
Additional Description: WAGO-2102-1304 3-CONDUCTOR THROUGH TERMINAL BLOCK; WITH LEVER AND PUSH-IN CAGE CLAMP; 2.5 MM; WITH TEST PORT; SUITABLE FOR EX I APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP; 2,50 MM; BLUE 60367578 WITH LEVER AND PUSH-IN CAGE CLAMP ; 2.5 MM ; WITH TEST PORT; SUITABLE FOR EX I APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP ; 2,50 M ; BLUE 60367578
Catalog Description: 3-conductor through terminal block; with lever and Push-in CAGE CLAMP®; 2.5 mm²; with test port; suitable for Ex i applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; blue
2102-1304 Application
Suitable for Ex i applications2102-1304 Standards
CSA 22.2 No 158|ATEX: PTB 18 ATEX 1010 U / IECEx: PTB 18.0001U (Ex eb IIC Gb)|RoHS CompliantSKU #2365544Part Number #2102-1304UNSPSC39121410UPC04055143741804
