Part Number # 2102-5304
SKU # 2402888
2102-5304

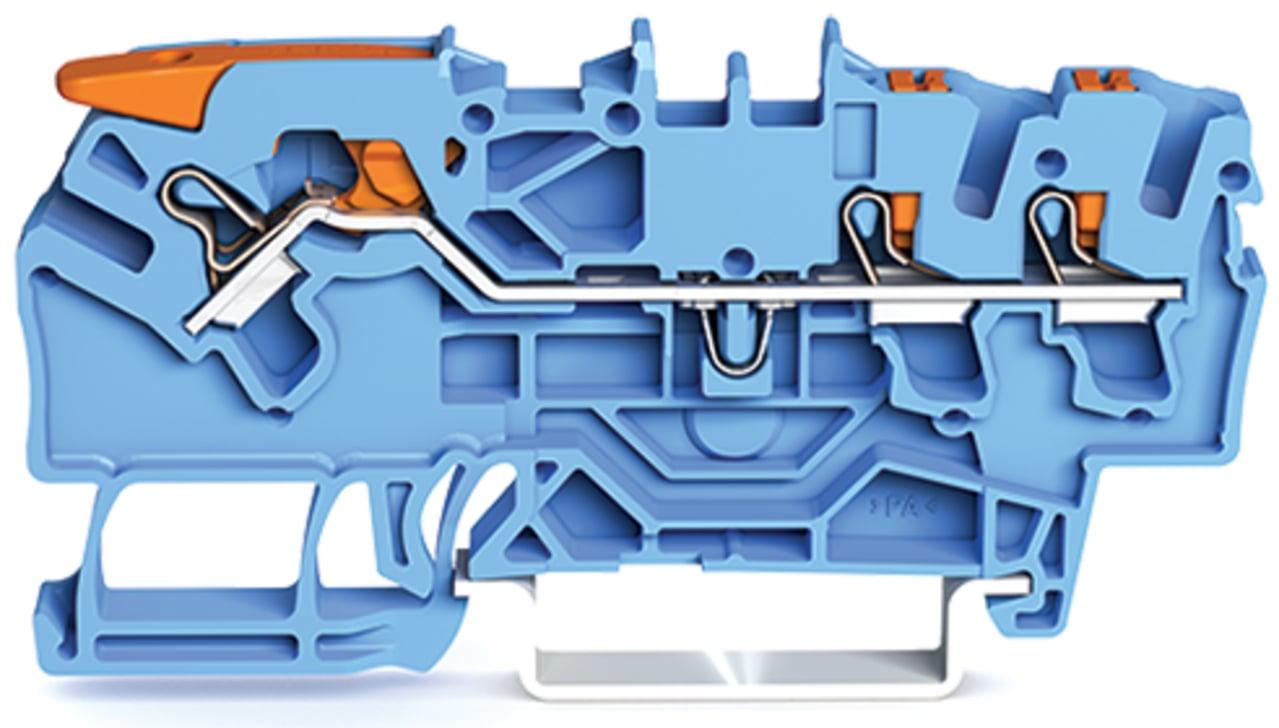

WAGO 2102-5304 2102 3 Conductor Terminal Block, 800 V, 32 A, 28 to 12 AWG Wire, DIN Rail Mounting
Part Number # 2102-5304
SKU # 2402888
Wago 2102-5304 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2102-5304 |
| SKU #: | 2402888 |
| Amperage Rating: | 32 A |
| Dimensions: | 2.843 in H x 0.205 in W x 1.295 in D |
| Series: | 2102 |
| Temperature Rating (Degrees F): | -60 to 105 deg C |
| Terminal Type: | Through |
| Type: | 3 Conductor |
| Wire Size: | 28 to 12 AWG |
| Connection type: | Push-In |
| Country of origin: | PL |
| Material: | Polyamide 6.6 |
| Mounting type: | DIN Rail |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143741989 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2102-5304 2102 3 Conductor Terminal Block, 800 V, 32 A, 28 to 12 AWG Wire, DIN Rail Mounting
Brand: Wago
Part Number: 2102-5304
Additional Description: WAGO-2102-5304 3-CONDUCTOR THROUGH TERMINAL BLOCK; 60367566 M ; WITH TEST PORT; SUITABLE FOR EX I APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP ; 2,50 MM ; BLUE
Catalog Description: 3-conductor through terminal block; with lever and push-button; 2.5 mm²; with test port; suitable for Ex i applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; blue
2102-5304 Application
Suitable for Ex i applications2102-5304 Standards
RoHS CompliantSKU #2402888Part Number #2102-5304UNSPSC39121410UPC04055143741989
Image provided may only be a representation of final product and may include optional equipment
