2102-5307

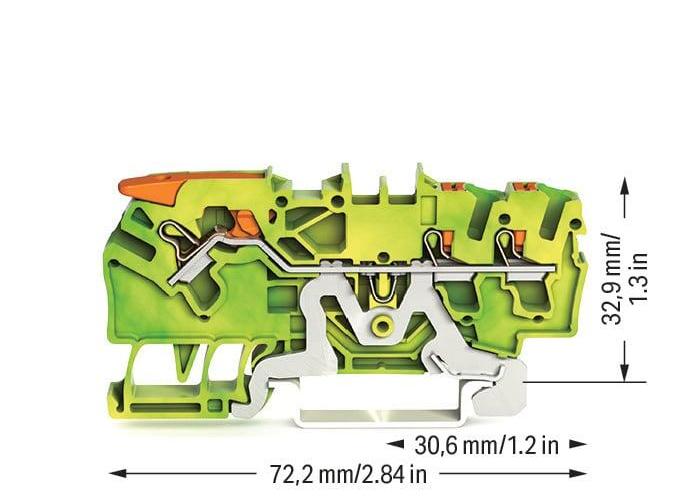

WAGO 2102-5307 TOPJOB S ground terminal block with Lever and Push-buttons
Part Number # 2102-5307
SKU # 2356891
Wago 2102-5307 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2102-5307 |
| SKU #: | 2356891 |
| Dimensions: | 2.843 in H x 0.205 in W x 1.295 in D |
| Number of Poles: | 1 |
| Type: | Lever |
| Wire Size: | 22 to 12 AWG |
| Actuation type: | Push-in || Lever |
| Color: | Green-yellow, Green/Yellow |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | PL |
| Depth: | 72.2 mm / 2.843 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 2.5 mm² |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Total number of connection points: | 3 |
| Weight: | 11.092 g |
| Width: | 5.2 mm / 0.205 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143742009 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2102-5307 TOPJOB S ground terminal block with Lever and Push-buttons
Brand: Wago
Part Number: 2102-5307
Additional Description: WAGO-2102-5307 3-CONDUCTOR GROUND TERMINAL BLOCK; 2.5 MM; WITH TEST PORT; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP; 2,50 MM; GREEN-YELLOW 60367565 2.5 MM ; WITH TEST PORT; SIDE AND 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP ; 2,50 MM ; GREEN-YELLOW TERMINAL BLOCK GREEN-YELLOW
Catalog Description: 3-conductor ground terminal block; with lever and push-button; 2.5 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; green-yellow
2102-5307 Standards
IEC/EN 60947-7-2|RoHS CompliantSKU #2356891Part Number #2102-5307UNSPSC39121410UPC04055143742009
