2106-1204

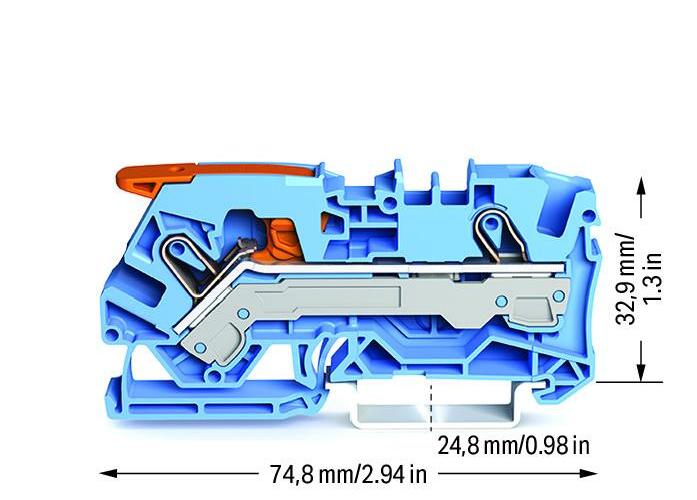

WAGO 2106-1204 TOPJOB S feedthrough terminal block with Lever and Open Tool Slot
Part Number # 2106-1204
SKU # 2365542
Wago 2106-1204 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2106-1204 |
| SKU #: | 2365542 |
| Amperage Rating: | 41 A |
| Dimensions: | 2.945 in H x 0.295 in W x 1.555 in D |
| Number of Poles: | 1 |
| Type: | Push-In |
| Wire Size: | 20 to 8 AWG |
| Actuation type: | Push-in || Lever |
| Color: | Blue |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 74.8 mm / 2.945 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 6 mm² |
| Rated current: | 41 A |
| Solid conductor: | 0.5 … 10 mm² / 20 … 8 AWG |
| Total number of connection points: | 2 |
| Weight: | 15.077 g |
| Width: | 7.5 mm / 0.295 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143742023 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2106-1204 TOPJOB S feedthrough terminal block with Lever and Open Tool Slot
Brand: Wago
Part Number: 2106-1204
Additional Description: WAGO-2106-1204 2-CONDUCTOR THROUGH TERMINAL BLOCK; WITH LEVER AND PUSH-IN CAGE CLAMP; 6 MM; WITH TEST PORT; SUITABLE FOR EX I APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP; 6,00 MM; BLUE 60367559 WITH LEVER AND PUSH-IN CAGE CLAMP ; 6 MM ; WITH TEST PORT; SUITABLE FOR EX I APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP ; 6,00 MM ; BLUE 60367559 CLAMP 6 MM , BLUE
Catalog Description: 2-conductor through terminal block; with lever and Push-in CAGE CLAMP®; 6 mm²; with test port; suitable for Ex i applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 6,00 mm²; blue
2106-1204 Application
Suitable for Ex i applications2106-1204 Standards
CSA 22.2 No 158|ATEX: PTB 18 ATEX 1011 U / IECEx: PTB 18.0018U (Ex eb IIC Gb)|RoHS CompliantSKU #2365542Part Number #2106-1204UNSPSC39121410UPC04055143742023
